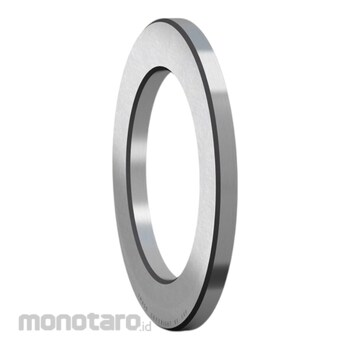

SKF GS Housing Washer
#Grup produk P112163585
Spesifikasi
| Bearing Part | Housing washer |
|---|---|
| Bore Diameter (mm) | 52 |
| Bore Diameter Housing Washer (D1) (mm) | 52 |
| Chamfer Dimension Housing Washer GS Series (r1,2) (mm) | min.0.6 |
| Coating | Without |
| Height (mm) | 4 |
| Material | Bearing steel |
| Outside Diameter (mm) | 70 |
| Outside Diameter/Housing Bore (D) (mm) | 70 |
| Shaft Diameter (mm) | 50 |
| Thickness Housing Washer GS Series (B) (mm) | 4 |
| UNSPSC | 31171505 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Housing washers for cylindrical and needle roller thrust bearings are supplied as separate components. They are made of hardened carbon chromium bearing steel and have a precision-ground raceway surface and a ground outside surface. The washers can be combined with roller and cage thrust assemblies and shaft washers to create complete bearings. SKF recommends using GS washers for high-speed applications where accurate centring of the washers is required.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
Feature
Enable full interchangeability of housing washers; Suitable for high-speed applications; Suitable where accurate centring of washers is required; 811 series washers are available for needle roller thrust bearingsUlasan Produk
