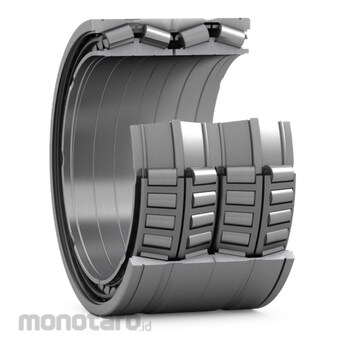

SKF Four-Row Tapered Roller Bearing
#Grup produk P112163521
Spesifikasi
| Abutment Diameter Housing (D1) (mm) | ≈379 |
|---|---|
| Abutment Diameter Shaft (d1) (mm) | ≈326 |
| Arrangement of Contact Angle (double-row bearing) | Not applicable |
| Basic Dynamic Load Rating (kN) | 3405 |
| Basic Static Load Rating (kN) | 7500 |
| Bearing Part | Complete bearing |
| Bore Diameter (D) (mm) | 304.902 |
| Bore Diameter (mm) | 304.902 |
| Bore Type | Cylindrical with helical groove |
| Cage | Sheet metal |
| Candidate for Remanufacturing | Yes |
| Chamfer Dimension Inner Ring (r1,2) (mm) | min.3.3 |
| Coating | Without |
| Comparative Axial Load Rating (Cfa) (kN) | 131 |
| Comparative Radial Load Rating (CF) (kN) | 830 |
| Contact Angle (°) | 12 |
| Design | TQO |
| Fatigue Load Limit (Pu) (kN) | 640 |
| Locating Feature, Bearing Outer Ring | None |
| Lubricant | None |
| Matched Arrangement | No |
| Number of Rows | 4 |
| Outer Ring Radius (chamfer) (r3,4) (mm) | min.3.3 |
| Outside Diameter (D) (mm) | 412.648 |
| Outside Diameter (mm) | 412.648 |
| Relubrication Feature | With |
| Sealing | Without |
| Total Bearing Width Over Inner Rings (B) (mm) | 266.7 |
| Total Bearing Width Over Outer Rings (T) (mm) | 266.7 |
| Width Outer Ring (mm) | 266.7 |
| Width, Inner Ring (mm) | 266.7 |
| Width, Total (mm) | 266.7 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Four-row tapered roller bearings can accommodate combined heavy radial and axial loads at low to moderate speeds. They are used almost exclusively in work roll applications such as rolling mills. SKF manufactures four-row tapered roller bearings in TQO and TQI designs, in many variants and with different features.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
Feature
Very high radial load carrying capacity; Accommodate axial loads in both directions; Axial space-saving solution for roll necks; Low friction; Long service lifeUlasan Produk
