SKF Four-Point Contact Ball Bearing
#Grup produk P112163503
Spesifikasi
| Axial Internal Clearance | NSTD |
|---|---|
| Basic Dynamic Load Rating (kN) | 52.7 |
| Basic Static Load Rating (kN) | 45 |
| Bearing Material | Bearing steel |
| Bore Diameter (mm) | 40 |
| Coating | Without |
| Contact Angle (°) | 23 |
| Contact Type | Four-point contact |
| Limiting Speed (r/minute) | 15000 |
| Locating Feature, Bearing Outer Ring | None |
| Lubricant | None |
| Matched Arrangement | No |
| Number of Rows | 1 |
| Outside Diameter (mm) | 80 |
| Relubrication Feature | Without |
| Ring Type | Two-piece inner ring and one-piece outer ring |
| Sealing | Without |
| UNSPSC | 31171538 |
| Universal Matching Bearing | No |
| Width (mm) | 18 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

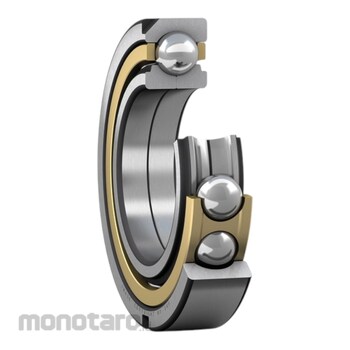

Four-point contact ball bearings can accommodate high axial loads in both directions and small radial loads. They can operate at very high speeds and are more suitable than deep groove ball bearings for supporting large axial forces. The outer ring, with ball and cage assembly, can be mounted separately from the two inner ring halves.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
Feature
High-speed capability; Accommodate high axial loads in both directions and small radial loads; Require considerably less axial space than double row angular contact ball bearingsUlasan Produk
