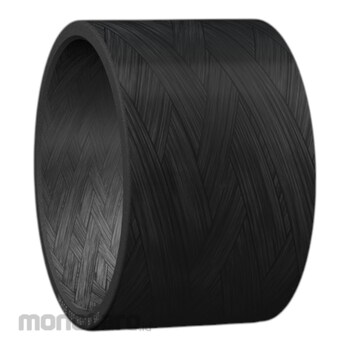

SKF Filament Wound Straight Bushing
#Grup produk P112163460
Spesifikasi
| Basic Dynamic Load Rating (kN) | 750 |
|---|---|
| Basic Static Load Rating (kN) | 1060 |
| Bore Diameter (D) (mm) | 90 |
| Bore Diameter (mm) | 90 |
| Design | Straight |
| Material | Filament wound |
| Maximum Operating Temperature (°C) | 140 |
| Minimum Operating Temperature (°C) | -50 |
| Outside Diameter (D) (mm) | 105 |
| Outside Diameter (mm) | 105 |
| Relubrication Feature | Without |
| UNSPSC | 31171605 |
| Width (B) (mm) | 60 |
| Width (mm) | 60 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
SKF filament wound straight (cylindrical) bushings are suitable for oscillating, rotating and linear movements, and can accommodate radial loads. The composite material is specially developed to accommodate heavy loads, impact loads and vibrations. The bushings are also less sensitive to misalignment and have excellent dry sliding characteristics.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
Feature
Maintenance-free operation; Very good frictional properties; High load carrying capacity; Excellent corrosion resistance; Electrically insulatingUlasan Produk
