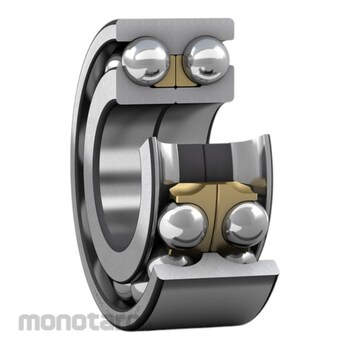

SKF Double Row Angular Contact Ball Bearing DMA Series
#Grup produk P112163309
Sebelum PPN:
Rp3.299.900 - Rp4.699.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Arrangement of Contact Angle (double-row bearing) | Back-to-back (O) |
|---|---|
| Axial Internal Clearance | CN |
| Bearing Material | Bearing steel |
| Cage | Machined brass |
| Chamfer Dimension Inner Ring for Two-piece Inner Ring (r1,2) (mm) | min.1.5 |
| Coating | Without |
| Contact Angle (°) | 45 |
| Contact Type | Normal contact (two-point contact) |
| Fillet Radius (ra) (mm) | max.1.5 |
| Locating Feature, Bearing Outer Ring | None |
| Lubricant | None |
| Matched Arrangement | No |
| Number of Rows | 2 |
| Relubrication Feature | Without |
| Ring Type | Two-piece inner ring and one-piece outer ring |
| Sealing | Without |
| UNSPSC | 31171531 |
| Universal Matching Bearing | No |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Double row angular contact ball bearings, with two-piece inner ring, correspond to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space than the equivalent pair of single row angular contact ball bearings. The two-piece inner ring enables incorporation of a larger number of balls, with a larger contact angle, providing a high load carrying capacity, especially in the axial direction.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
Feature
Accommodate very high axial loads in both directions, radial loads, and tilting moments; Suitable where a stiff bearing arrangement is required; Separable design means outer ring with ball and cage assemblies can be mounted independently of the inner ring halvesUlasan Produk
