Spesifikasi
Abutment Diameter Housing (Da) (mm) | max.63.4 |
---|---|
Basic Static Load Rating (kN) | 11 |
Bearing Material | High temperature steel |
Bore Diameter (D) (mm) | 40 |
Bore Diameter (mm) | 40 |
Bore Type | Cylindrical |
Cage | Non-metallic |
Chamfer Dimension (r1,2) (mm) | min.1 |
Coating | Coated |
Fillet Radius (ra) (mm) | max.1 |
Filling Slots | Without |
Limiting Speed (r/minute) | 80 |
Locating Feature, Bearing Outer Ring | None |
Lubricant | Solid lubricant |
Matched Arrangement | No |
Maximum Abutment Diameter Shaft (da) (mm) | 49.2 |
Maximum Operating Temperature (°C) | 350 |
Minimum Abutment Diameter Shaft (da) (mm) | 44.6 |
Number of Rows | 1 |
Operating Temperature (°C) | max.350 |
Outside Diameter (D) (mm) | 68 |
Outside Diameter (mm) | 68 |
Radial Internal Clearance | Multiples of C5 |
Recess Diameter Outer Ring Shoulder (D2) (mm) | ≈61.1 |
Relubrication Feature | Without |
Sealing | Shield on both sides |
Sealing Type | Non-contact |
Shoulder Diameter Inner Ring (d1) (mm) | ≈49.25 |
UNSPSC | 31171504 |
Width (B) (mm) | 15 |
Width (mm) | 15 |
Pilih jenis produk yang diinginkan
Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
---|---|---|---|---|
Loading... |
Informasi Produk
Description

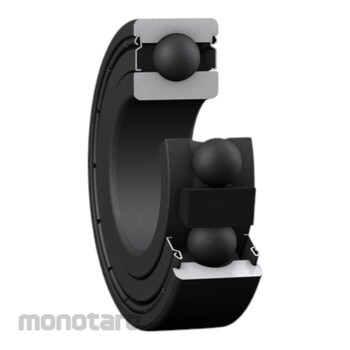

Single row deep groove ball bearings for high temperature applications, with shields on both sides, are designed for challenging operating conditions, with certain variants being capable of performing at temperatures as high as 350 °C (660 °F). They have larger radial internal clearances and use graphite-based lubricants that enable operation at high temperatures. They are lubricated for the life of the bearing and the entire surface of the bearings and shields are manganese phosphate treated, which enhances adhesion of the lubricant to the metal and improves their running-in properties. As with deep groove ball bearings generally, they are particularly versatile, accommodate radial and axial loads in both directions, and are easy to mount.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
Feature
Optimized for operation at high temperatures – up to 350 °C (660 °F); Easily swapped with grease-lubricated bearings of corresponding ISO dimensions; Increased reliability, reduced complexity and decreased environmental impact; Integral sealing prolongs bearing service life; Typical benefits of single row deep groove ball bearingsUlasan Produk
