SKF Combined Needle Roller/Angular Contact Ball Bearing NKIB Series
#Grup produk P112162984
Spesifikasi
| Axial Load Capability | Double-direction |
|---|---|
| Bearing Material | Bearing steel |
| Bearing Part | Complete bearing |
| Bore Diameter (D) (mm) | 65 |
| Bore Diameter (mm) | 65 |
| Chamfer Dimension (r1,2) (mm) | min.1 |
| Coating | Without |
| Diameter of Housing Abutment (Da) (mm) | max.85 |
| Diameter of Inner Ring Raceway (F) (mm) | 72 |
| Diameter of Shaft Abutment (da) (mm) | min.70 |
| Fatigue Load Limit Axial (Pu) (kN) | 0.816 |
| Fatigue Load Limit Radial (Pu) (kN) | 14.6 |
| Limiting Speed (r/minute) | 6300 |
| Lubricant (thrust part) | None |
| Outside Diameter (D) (mm) | 90 |
| Outside Diameter (mm) | 90 |
| Radial Internal Clearance | CN |
| Radial Part | With cage |
| Radius of Fillet (ra) (mm) | max.1 |
| Reference Speed (r/minute) | 5600 |
| Rolling Bearing Type | Needle roller / angular contact ball bearing |
| Rolling Element (thrust part) | Balls |
| Thrust Part | With cage |
| Tolerance Class | Other |
| UNSPSC | 31171512 |
| Width (B) (mm) | 38 |
| Width (mm) | 38 |
| Width Outer Ring (mm) | 34 |
| Width of Outer Ring (C) (mm) | 34 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

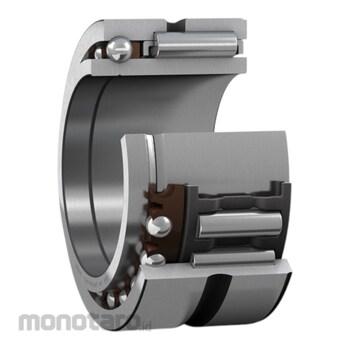

These bearings consist of a radial needle roller bearing combined with an angular contact ball bearing. Together they can accommodate both heavy radial loads and light axial loads in both directions. In addition, they can operate at high speeds. Their low cross-sectional height makes the bearings particularly suitable for applications where other types of locating bearing arrangements occupy too much space.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
Feature
Accommodate both radial and axial loads; High load carrying capacity; High-speed capability; Low cross section; Separable designUlasan Produk
