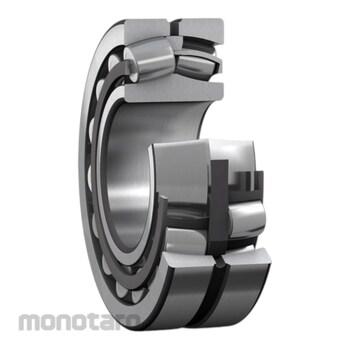

SKF CCJA/W33VA405 Type Spherical Roller Bearings
#Grup produk P112162902
Sebelum PPN:
Rp18.999.900 - Rp52.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Bore Type | Cylindrical |
|---|---|
| Cage | Surface-hardened sheet metal |
| Candidate for Remanufacturing | Yes |
| Chamfer Dimension (r1,2) (mm) | min.4 |
| Deviation Limits of Mid-Range Bore Diameter (tΔdmp) (mm) | -0.013 to 0 |
| Deviation Limits of Ring Width (tΔBs) (mm) | -0.08 to 0 |
| ISO Tolerance Class for Dimensions | Normal, bore to P5 and outside diameter P6 |
| Locating Feature, Bearing Outer Ring | Without |
| Lubricant | None |
| Number of Rows | 2 |
| Radial Internal Clearance | C4 |
| Radius of Fillet (ra) (mm) | max.3 |
| Relubrication Feature | With |
| Sealing | Without |
| Tolerance Class for Dimensions | Normal, bore to P5 and outside diameter P6 |
| Tolerance Class for Run-out | P5 |
| UNSPSC | 31171510 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. This bearing design offers excellent performance in many types of vibrating machinery. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
Feature
Accommodate misalignment; High load carrying capacity; Accommodate very high vibration levels; Low friction and long service life; Increased wear resistanceUlasan Produk
