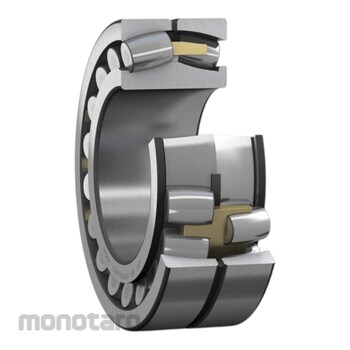

SKF CAK/C3W33 Type Spherical Roller Bearings
#Grup produk P112162823
Spesifikasi
| Basic Dynamic Load Rating (kN) | 21242 |
|---|---|
| Basic Static Load Rating (kN) | 35500 |
| Bore Diameter (D) (mm) | 710 |
| Bore Diameter (mm) | 710 |
| Bore Type | Tapered 1:12 |
| Cage | Machined brass |
| Candidate for Remanufacturing | Yes |
| Chamfer Dimension (r1,2) (mm) | min.12 |
| Deviation Limits of Mid-Range Bore Diameter (tΔdmp) (mm) | 0–0.08 |
| Deviation Limits of Mid-Range Outside Diameter (tΔDmp) (mm) | -0.16 to 0 |
| Deviation Limits of Ring Width (tΔBs) (mm) | -0.75 to 0 |
| Deviation Limits of Tapered Slope (tΔSL) (mm) | 0–0.08 |
| Diameter of Housing Abutment (Da) (mm) | max.1232 |
| Diameter of Lubrication Hole (K) (mm) | 12 |
| Fatigue Load Limit (Pu) (kN) | 2000 |
| ISO Tolerance Class for Dimensions | Normal |
| Limiting Speed (r/minute) | 320 |
| Locating Feature, Bearing Outer Ring | Without |
| Lubricant | None |
| Number of Rows | 2 |
| Outside Diameter (D) (mm) | 1280 |
| Outside Diameter (mm) | 1280 |
| Radial Internal Clearance | C3 |
| Radius of Fillet (ra) (mm) | max.10 |
| Reference Speed (r/minute) | 200 |
| Relubrication Feature | With |
| Sealing | Without |
| Shoulder Diameter of Inner Ring (d2) (mm) | ≈873 |
| Shoulder/Recess Diameter of Outer Ring (D1) (mm) | ≈1097 |
| Tolerance Class for Dimensions | Normal |
| Tolerance Class for Run-out | Normal |
| UNSPSC | 31171510 |
| Width (B) (mm) | 450 |
| Width (mm) | 450 |
| Width of Lubrication Groove (b) (mm) | 22.3 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
Feature
Accommodate misalignment; High load carrying capacity; Relubrication features; Low friction and long service life; Increased wear resistanceUlasan Produk
