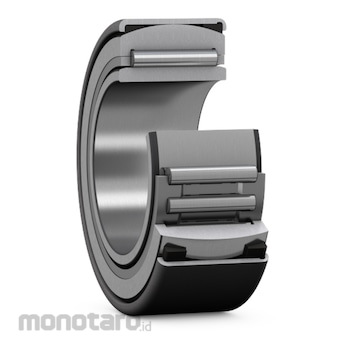

SKF Alignment Needle Roller Bearing
#Grup produk P112162683
Spesifikasi
| Aligning Feature | With |
|---|---|
| Basic Dynamic Load Rating (kN) | 12.8 |
| Basic Static Load Rating (kN) | 17.6 |
| Bearing Material | Bearing steel |
| Bearing Part | Complete bearing |
| Bore Diameter (D) (mm) | 15 |
| Bore Diameter (mm) | 15 |
| Cage | Sheet metal |
| Chamfer Dimension Inner Ring (r1,2) (mm) | min.0.3 |
| Chamfer Dimension Sheet Steel Sleeve (r) (mm) | min.0.8 |
| Coating | Without |
| Fatigue Load Limit (Pu) (kN) | 2.12 |
| Fillet Radius (ra) (mm) | max.0.8 |
| Fillet Radius (rb) (mm) | max.0.3 |
| Largest Permissible Abutment Diameter Housing (Da) (mm) | max.27 |
| Limiting Speed (r/minute) | 24000 |
| Lubricant | None |
| Number of Flanges, Outer Ring | 2 |
| Number of Rows | 1 |
| Outer Ring Type | Drawn cup with open ends |
| Outside Diameter (D) (mm) | 32 |
| Outside Diameter (mm) | 32 |
| Raceway Diameter Inner Ring F (mm) | 18 |
| Radial Internal Clearance | CN |
| Reference Speed (r/minute) | 22000 |
| Relubrication Feature | Without |
| Sealing | Without |
| Shoulder Diameter Sleeve (D1) (mm) | 27 |
| Smallest Permissible Abutment Diameter Housing (Da) (mm) | min.26 |
| Smallest Permissible Abutment Diameter Shaft (da) (mm) | min.17 |
| Tolerance Class | Normal |
| UNSPSC | 31171512 |
| Width (B) (mm) | 16 |
| Width (mm) | 16 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Alignment needle roller bearings are self-aligning and offer a compact solution in applications where less space is available. Owing to their large number of rollers, they have a high load carrying capacity. Their internal design, where a convex outer ring meets two concave seating rings encased in a drawn sleeve, enables the bearings to compensate for initial errors of alignment. Bearings with an inner ring are used for applications where the shaft cannot be hardened and ground.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
Feature
High radial load carrying capacity; Accommodate static initial misalignment; Low cross-sectional heightUlasan Produk
