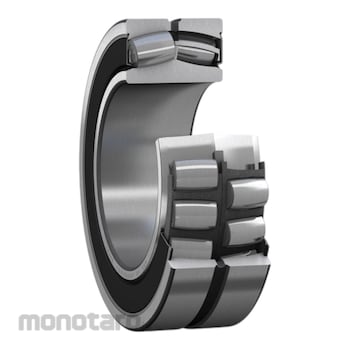

SKF 2CS5/VT143 Type Spherical Roller Bearings
#Grup produk P112162665
Spesifikasi
| Basic Dynamic Load Rating (kN) | 451 |
|---|---|
| Basic Static Load Rating (kN) | 585 |
| Bore Diameter (D) (mm) | 110 |
| Bore Diameter (mm) | 110 |
| Bore Type | Cylindrical |
| Cage | Machined brass |
| Candidate for Remanufacturing | Yes |
| Chamfer Dimension (r1,2) (mm) | min.2 |
| Deviation Limits of Mid-Range Bore Diameter (tΔdmp) (mm) | -0.02 to 0 |
| Deviation Limits of Mid-Range Outside Diameter (tΔDmp) (mm) | -0.025 to 0 |
| Deviation Limits of Ring Width (tΔBs) (mm) | -0.08 to 0 |
| Diameter of Housing Abutment (Da) (mm) | max.169 |
| Diameter of Lubrication Hole (K) (mm) | 4.5 |
| Fatigue Load Limit (Pu) (kN) | 61 |
| ISO Tolerance Class for Dimensions | Normal |
| Limiting Speed (r/minute) | 800 |
| Locating Feature, Bearing Outer Ring | Without |
| Lubricant | Grease |
| Maximum Diameter of Shaft Abutment (da) (mm) | 122 |
| Minimum Diameter of Shaft Abutment (da) (mm) | 121 |
| Number of Rows | 2 |
| Outside Diameter (D) (mm) | 180 |
| Outside Diameter (mm) | 180 |
| Radial Internal Clearance | CN |
| Radius of Fillet (ra) (mm) | max.2 |
| Relubrication Feature | With |
| Sealing | Seal on both sides |
| Sealing Type | Contact |
| Shoulder Diameter of Inner Ring (d2) (mm) | ≈122 |
| Shoulder/Recess Diameter of Outer Ring (D1) (mm) | ≈166 |
| Tolerance Class for Dimensions | Normal |
| Tolerance Class for Run-out | P5 |
| UNSPSC | 31171510 |
| Width (B) (mm) | 56 |
| Width (mm) | 56 |
| Width of Lubrication Groove (b) (mm) | 8.3 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. Under normal operating conditions, sealed bearings are almost maintenance-free, keeping service costs and grease consumption low. The design includes features to facilitate relubrication.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
Feature
Accommodate misalignment; High load carrying capacity; Sealed for increased reliability, with relubrication features; Low friction and long service life; Increased wear resistanceUlasan Produk
