Wideband amplifier
The WA301 is a wideband amplifier designed to be used alongside a function generator when an output voltage of 20 V peak is insufficient. The WA301 enables the output voltage to be boosted to 30 V peak to peak.
Alternatively, this amplifier may be used as a simple wideband amplifier in order to provide a higher output level (DAC, for example).

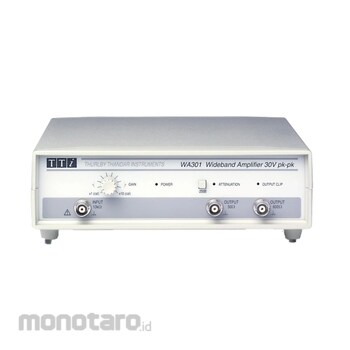

Aim-TTi RF Amplifier, 20dB Switchable Output, -3dB at 1MHz Bandwidth - WA301
This waveform amplifier is designed to extend the output range of function generators, with a 30 V peak to peak output swing, DC to 1MHz bandwidth, high impedance input, and adjustable gain. It provides both 50 Ohm and 600 Ohm outputs, with a switchable attenuator for versatility in applications.
Aim-TTi RF Amplifier
#Grup produk P112161408
Spesifikasi
| Dimensions (mm) | 230x210x75 |
|---|---|
| Flatness (dB) | -1 |
| Gain (dB) | 0-20 |
| Height (mm) | 75 |
| Input Impedance (kΩ) | 10 |
| Length (mm) | 230 |
| Maximum Frequency (MHz) | 1 |
| Maximum Operating Temperature (°C) | 40 |
| Minimum Operating Temperature (°C) | 5 |
| Output Impedance (ohm) | 50 , 600 |
| Output voltage (V) | 20 Pk-Pk |
| Rise-Fall Time (ns) | 500 |
| Width (mm) | 210 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- The device offers a 30V peak to peak output swing with a DC to 1MHz bandwidth, ensuring versatile signal transmission capabilities- Its adjustable gain from x1 to x10 and high impedance input facilitate precise signal processing and reception across various applications
- With both 50 Ohm and 600 Ohm outputs, it provides flexibility in load requirements, enhancing compatibility
- Featuring fully protected output to prevent damage, it ensures reliable performance and longevity in demanding conditions
- Compact and lightweight, it offers portability without compromising functionality, while its wide operating and storage temperature range ensures versatility and reliability, compliant with safety and EMC standards
Use
- Boosting function generator output voltage- Providing adjustable output levels from fixed sources
