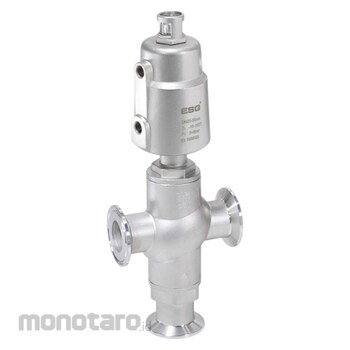

ESG Pneumatic Three-Way Angle Seat Valve 103 Series
#Grup produk P112154231
Spesifikasi
| Standard | DIN, ISO |
|---|---|
| Actuator Material | CF8 |
| Body Material | CF8M |
| Seal Material | PTFE |
| Ambient Temperature (°C) | -10 to +80 |
| Connection Type | Threaded, quick-loading |
| Control Pressure (bar) | 3 to 8 (43.5 to 116psi) |
| Medium Temperature (°C) | -10 to +180 (PTFE normal temperature type) |
| Pipeline Pressure (bar) | Maximum 16 (232psi) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The valve has three through holes, which can realize the commutation split or mixing function, and can replace two two-way stop valves to a certain extent. When the valve is in the non-working state, due to the spring force, the C end of the valve is normally closed, and the B end is normally open; when the actuator piston is acted by the compressed gas, the C end of the valve is opened and the B end is closed. In the double acting mode, the valve is opened and closed by compressed air.
