Teledyne LeCroy Waveform Generator

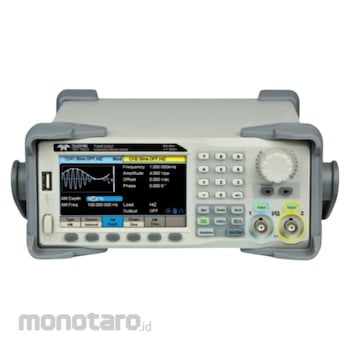

Teledyne LeCroy T3AFG500 Waveform Generator 500 MHz
Product Description
Teledyne LeCroy's new T3AFG500, 500 MHz function / arbitrary waveform generator uses advanced Digital Frequency Synthesis (DDS) technology to produce high quality standard function and arbitrary waveform signals. It also provides a wide range of analog and digital modulation functions. The T3AFG500 Arbitrary Waveform Generator has a 500 MHz bandwidth, 2.4 GSa/s sample rate, 16-bit vertical resolution and 20 Mpts of data. Common analog and digital modulations, sweep and burst are provided to support complex signal generation. The T3AFG500 also provides true dual channels with internal waveform combination, flexible phase/channel control and copy/coupling/tracking between channels. These features enable the T3AFG500 to provide a variety of high fidelity and low jitter signals, meeting the growing requirements of complex and intensive applications. The T3AFG500 also have the added optional feature of IQ Modulation which supports more complex applications.
