SKF Large Induction Heater
#Grup produk P112153719
Spesifikasi
| Cooling fan | No |
|---|---|
| Dimensions (mm) | 290x750x440 (WxLxH) |
| Frequency (Hz) | 50 to 60 |
| Heating Temperature Control (°C) | 0 to 250 |
| Heating Time Control (minute) | 0.1 to 60 |
| Heating Time Steps (minute) | 0.1 |
| Housing Material | Steel, Glass fibre filled polyamide |
| Power Consumption (kW) | 11.5 (Maximum) |
| Voltage (V) | 400 to 460 |
| Workpiece Weight (kg) | 300 (Maximum) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

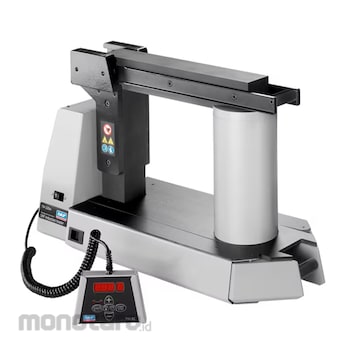

The SKF TIH 220M is a large induction heater and is designed for the hot mounting of bearings. This versatile heater is ideal for use on workbenches and can easily be transported to on-site applications with the optional heater trolley TIH T1. The heater has a convenient sliding yoke and is supplied with an additional smaller yoke. The TIH 220M can heat bearings with a minimum bore diameter of 60 mm and larger bearings with a maximum weight of 300 kg.
Feature
- Supplied with standard sliding yoke and one smaller yoke located in an integrated storage compartment - Easy and safe to use with automatic temperature control or time controlled heating
- Automatic demagnetization reduces risk of bearing contamination
- Suitable for non-bearing applications for workpieces weighing up to 150 kg
- Automatic temperature hold function to keep the bearing hot after completion of the heating cycle
