IGUS Cable Carrier Micro Open
#Grup produk P112013837
Spesifikasi
Bend Radius (inch) | 1.1 |
---|---|
Carrier Design | Enclosed |
Carrier Links Material | Igumid G |
Cavity Height (inch) | 0.41 |
Color | Black |
Crossbar Material | Igumid TE |
Crossbar Opening Design | Zip-Open |
Crossbar Style | Zipper |
Features | For High Acceleration, Lightweight |
Frame Stay | Cross Bar |
Height (inch) | 0.6 |
Includes | No Bracket Included |
Item | Cable and Hose Carrier |
Link to Link Pitch (inch) | 0.8 |
Loop Height (inch) | 2.8 |
Loop Length (inch) | 5.51 |
Max. Cable Diameter (inch) | 0.31 |
Maximum Operating Temperature (°F) | 248 |
Minimum Operating Temperature (°F) | -40 |
Mounting Bracket Design | Locking |
Mounting Bracket Type | Fixed End, Moving End |
Mounting Brackets Included | No |
Number of Channels | 1 |
Series | 7 |
Type | Small |
UNSPSC | 24101707 |
Pilih jenis produk yang diinginkan
Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
---|---|---|---|---|
Loading... |
Informasi Produk
Description

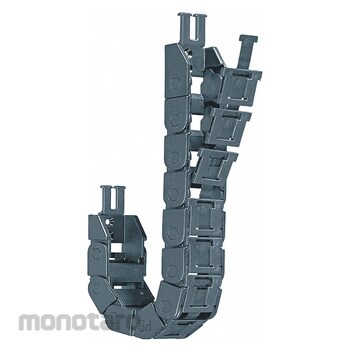

These cable and hose carriers have a zipper top on the outer radius that pulls open several connected covers at the same time. Users can access the carrier cavity without pulling off individual covers one at a time, saving time during installations or modifications. The zipper top can be separated from the carrier and rejoined in any link. These carriers allow cable and hose to lay in the carrier cavity, so they don't need to be pulled through the whole length of the carrier. They also have an open construction, which promotes air flow to prevent heat buildup. They are made of molded links that snap together to create customized lengths, so they're ideal for systems that need to be extended or for replacing cable or hose with terminated ends. Cable and hose carriers support and protect moving cable and hose in general purpose applications.
