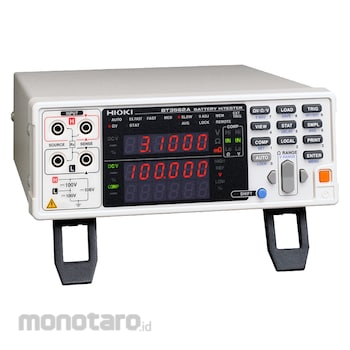

Hioki Battery HiTester
#Grup produk P112005953
Kondisi Barang:
Spesifikasi
| Measurement Method | AC four-terminal method |
|---|---|
| Measurement Frequency | 1 kHz ±0.2 Hz |
| Voltage Measurement Range (V) | 6, 60, 100 |
| Interface | LAN (TCP/IP, 10BASE-T/100BASE-TX), RS-232C, EXT I/O (37-pin Handler interface), Analog output (DC 0 V to 3.1 V) |
| Power Supply | 100 to 240 V AC, 50 Hz/60 Hz, 35 VA max. |
| Resistance Basic Accuracy | ±0.5% rdg ±10 dgt. (3 mΩ range), ±0.5% rdg ±5 dgt. (30 mΩ range or more) |
| Resistance Measurement Ranges | 3 mΩ, 30 mΩ, 300 mΩ, 3 Ω, 30 Ω, 300 Ω, 3 kΩ |
| Voltage Basic Accuracy | ±0.01% rdg. ±3 dgt. |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Fully Automated Production Line Testing of Large Cells for xEVs or Mid-sized Packs of up to 100V
Feature
- Simultaneous measurement of internal resistance and open circuit voltage. - Fully automated production line testing of large cells for xEVs or mid-sized packs of up to 100V.
- Measure from 0Ω to 3.1kΩ (minimum resolution 0.1μΩ)
- Resistance measurement ranges: 3mΩ/30mΩ/300mΩ/3Ω/30Ω/300Ω/3kΩ
- Measure from 0V DC to ±100V DC (minimum resolution 10μV)
- Voltage measurement ranges: 6V/60V/100V
- Equipped with LAN
