Extremely flexible. Excellent shock absorption and torsion damping performance.
Simple structure for easy installation and removal.
No lubrication required, making maintenance easy and economical.

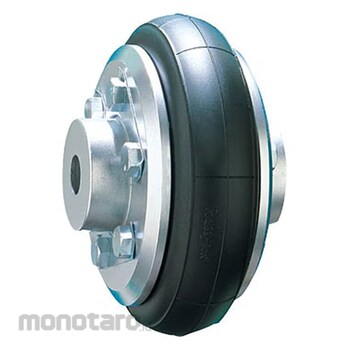

Nitta Chemical Loveflex Coupling RFH Type
#Grup produk P112004732
Spesifikasi
| Neck Length L (mm) | (Volts) 30 |
|---|---|
| Allowable Torque T (N m) | 490 |
| Bolt Pitch Diameter B (mm) | 110 |
| Boss Outer Diameter Dn (mm) | 80 |
| Flange Length l (mm) | 56 |
| Flange Outer Diameter Df (mm) | phi 168 |
| Flange Spacing Z2 (mm) | 12 |
| Flange Spacing Z3 (mm) | 75 |
| Flange spacing Z1 (mm) | 28 |
| Moment of Inertia (N cm²) | 3.55 |
| Outermost Diameter Da (mm) | 210 |
| Overall Width L (mm) | 140 |
| Permitted Rotation Speed (min -1 [rpm]) | 3000 |
| Shaft Diameter Maximum d (mm) | 50 |
| Shaft Diameter Minimum d (mm) | 25 |
| Voltage (V) | 16 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
*Sample image (please check the specifications of each product number for details)Ulasan Produk
