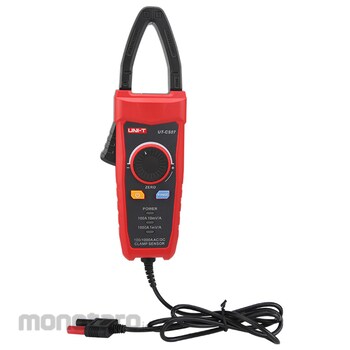

UNI-T AC/DC Clamp Sensor (Sensor Tang Arus)
#Grup produk P112004468
Spesifikasi
| Jaw Size (mm) | 35 (Conductor); 65x8 (Busbar) |
|---|---|
| Wire Length (m) | 1.1 |
| True RMS | Depends on the Multi-meter |
| ACA Current (Range/Output Ratio/Accuracy) | 100.0A / 10mV/A / ±(1.5%+0.5A), 45Hz~200Hz; 1000A / 1mV/A / ±(2.0%+0.5A), 45Hz~200Hz |
| DCA Current (Range/Output Ratio/Accuracy) | 100.0A / 10mV/A / ±(1.5%+0.5A); 1000A / 1mV/A / ±(2.0%+0.5A) |
| Dimensions (mm) | 276x86x50 |
| Frequency ACA (Hz) | 50 ~ 400 |
| Output Ratio (mV/A) | 10 & 1 |
| Power Supply | AA x 2 = 3V |
| Response Time | Depends on the Multi-meter |
| Working Current (mA) | <50 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The UT-CS07 is a high-reliability and high-security AC/DC current sensor that can be used as an expansion device for multimeter current measurement. It measures current through the sensor and converts the current value into a voltage value. The converted voltage is then transmitted to the multimeter via a cable, and the multimeter displays the corresponding voltage value. It can measure up to 1,000 A of AC/DC current. With reliable measurement accuracy and a unique appearance, it has become a practical auxiliary tool for current acquisition in electrical instruments.
Feature
- Certificates: CE, cETLus, RoHS- 35mm slender clamp, suits for dense wiring
- Such as: in inverters, combiner boxes, copper busbars, etc.
- Compatible DMMs: UT117C, UT196, UT139C, UT197, UT197PV and etc.
- AC/DC Current: 1000A; Frequency response: 45Hz~400Hz
- Output ratio：1000A @ 10mV/1A；100A @ 1mV/1A
- Zero function
- AC/DC 1000A input protection
- Category rating：CATIII 1500V /CAT IV 600V
