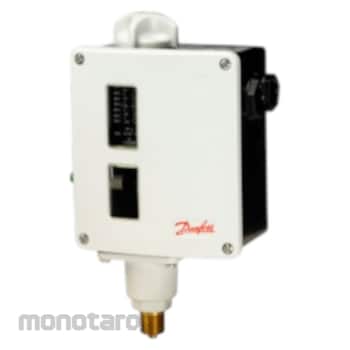

Danfoss Pressure Switch RT116
#Grup produk P112003724
Spesifikasi
| Function | Auto |
|---|---|
| Pressure Connection Type | G |
| Pressure Connection Size | 3/8 |
| Ambient Temperature Range (°C) | -50 ~ 70 |
| Contact Function | SPDT, Reset |
| Contact Rating | AC15=3 A, 400 V, AC1=10 A, 400 V, AC3=4 A, 400 V, DC13=12 W, 220 V, LR=28 A, 400 V |
| Differential (bar) | 0.33 to 1.3 |
| EN 60947 Electrical Properties | Insulation: 400V, Pollution degree: 3, Rated impulse voltage: 4 kV, Short circuit prot, fuse: 10A |
| EN 60947 Wiring Properties | Flex, ferrules: 0.2-1.5 mm2, Flex, no ferrules: 0.2-2.5 mm2, Solid/stranded: 0.2-2.5 mm2 |
| Electrical Connection Male/Female | Female |
| Electrical Connection Size | 2xPg 13.5 |
| Electrical Connection Standard | DIN 40430 |
| Electrical Specification Standard | EN 60947-4/-5 |
| Enclosure Rating IP | IP66 |
| Maximal Working Pressure (bar) | 22 |
| Pressure Male/Female | Male |
| Regulation Range Pe (bar) | 1 to 10 |
