Phase sequence display with LCD
Display of a missing or incorrectly connected outer conductor
Non-contact motor rotation indicator when the motor is running
De-energised identification of motor connections (U, V, W) via a manual drive
Product information
Fast detection of phase sequence in three-phase supply
Voltage range from 40 to 700 V, Frequency range 16 to 400 Hz
Product highlights
Robust housing with rubber protective cover
Detachable test leads
Measurement category CAT IV, 600 V
Back light
Testing rotary field direction possible without batteries, or with empty batteries

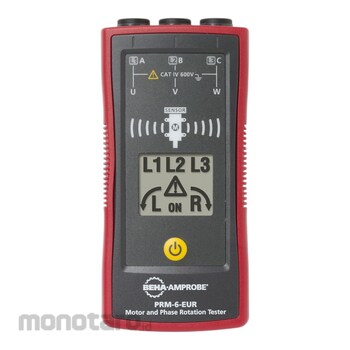

Beha Amprobe Phase Rotation Tester
#Grup produk P111997833
Spesifikasi
| Battery Type | AAA |
|---|---|
| Connection Type | Test Lead |
| Current Consumption (mA) | <3.5 |
| Dimensions (mm) | 137 x 65 x 33 |
| Display Type | LCD |
| Height (mm) | 33 |
| Length (mm) | 137 |
| Maximum Frequency (Hz) | 400 |
| Maximum Operating Temperature (°C) | +40 |
| Maximum Voltage (V) | 700 |
| Minimum Frequency (Hz) | 16 |
| Minimum Voltage (V) | 40 |
| Non-Contact | Non Contact |
| Overvoltage Category | CAT IV 600V |
| Plug Type | CEE |
| Power Source | Battery |
| Safety Category | CAT IV 600 V |
| Safety Category Level | CAT IV |
| Safety Category Voltage (V) | 600 |
