Product Description

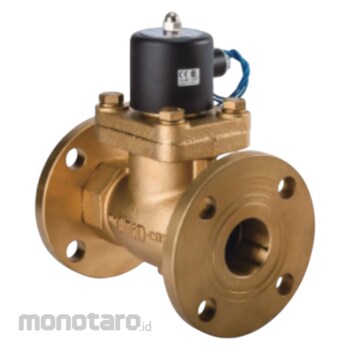

USF series is multiplex, piston guiding, conductive and normally closed (NC) 2/2 way solenoid valve.
Applied fluid type : water, air, steam, heavy oil
Cautions
Minimum pressure to open: over 0.5-1kgf-cm²
Before pipelining, the pipe line must be very clean without any contaminants or impurity.
To extend the lifetime, Y-line filter should be installed in the front end of solenoid valve.
AC voltage tolerance: ± 10%; DC voltage tolerance: ± 1%
It should be installed horizontally; vertical installation is not advisable.
Not Suitable For Fluid As Below:
Liquid status when it is in high temperature; solid status when it is in low temperature.
Corrosive fluid
Viscosity over 20 cst
Material
Coil : Special copper wire (H class)
Tube : Stainless steel
Spring : Stainless steel
Core : Stainless steel
Plug : PTFE +15%GF
Piston : Brass
Piston plug : PTFE
Valve body : Cast Bronze
Uni-D Solenoid Valve NC Type
#Grup produk P111993262
Sebelum PPN:
Rp5.899.900 - Rp13.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Dimension D (mm) | 58 |
|---|---|
| Fluid Temperature (°C) | -5°C -M3 +185 |
