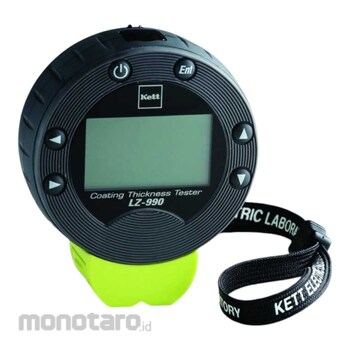

Kett Dual-Type Coating Thickness Tester Measuring Bench
#Grup produk P111990928
Spesifikasi
| Measurement Method | Uses both electromagnetic induction and eddy-currentmethods (with automatic selection function) |
|---|---|
| Applications | Non-magnetic coating on ferrous metal substrate and insulating coating on non-ferrous metal substrate |
| Data Memory | Approx. 1000 points |
| Application Memory | 8 Types of electromagnetic or eddy current methods,total 16 Calibration curves |
| Dimensions (mm) | 82x99.5x32 (WxDxH) |
| Display Method | Digital (backlit LCD, smallest displayed unit 0.1 μm) |
| External Output | Can be output to PC (USB) or printer (RS-232C) |
| Functions | Application memory (calibration curves), Measured datamemory, Data delete, Data output, Lot classification, AutoPower ON/OFF, Clock, Upper and lower limits, Statisticalcalculations, Backlight, Unit setting, etc, total 15 functions |
| Measurement Precision (μm) | <50 ± 1, ≥50 to <1000 ± 2%, ≥1000 to <2000 ± 3% |
| Measurement Range (µm) | 0-2000 (or 0-80mils) |
| Operating Ambient Temperature (°C) | 0 to 40 |
| Power Consumption (mW) | 40 (when backlit OFF) |
| Power Supply (V) | 2x 1.5Batteries (\"AAA\" size Alkaline) |
| Resolution (µm) | <100, 0.1; ≥100, 1 |
