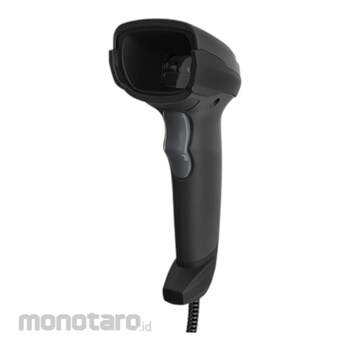

HPRT Scanner Barcode 2D Handheld
#Grup produk P111988446
Spesifikasi
| Certification | CE FCC RoHS |
|---|---|
| Dimensions (mm) | 83(D) x 67(W) x 175(H) |
| ESD | ±15 kV (Air discharge) ±8 kV (Direct discharge) |
| Environment Luminosity (lux) | 0 - 100000 |
| FOV | Horizontal: 32° , Vertical: 25° |
| Focus | Infrared LED |
| Illumination | Infrared LED |
| Image Sensor | CMOS |
| Interface | RS-232 Serial Port, USB, USB Virtual Serial Port |
| Notification | Buzzer, LED Indicator |
| Operating Current | Standby: 100mA, Working: 230mA |
| Operating Temperature | -20°C - +50°C |
| Operating Voltage | 5VDC±10% |
| Pixel | 640x480 |
| Recognition Sensitivity | Pitch±60°, Tilt360°, Skew±60° |
| Relative Humidity | 5% - 95% (No Condensation) |
| Resolution | ≥3mil |
| Storage Temperature | -40°C - +70°C |
| Symbol Contrast | ≥20% |
| Trigger Method | Manual keystroke, induction recognition, continuous recognition |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
2D Handheld Barcode Scanner- Topnotch decoding library
- New generation CMOS image sensor
- Intelligent auxiliary aiming & lighting system
- Declassify highly-distorted barcodes
- 1.5m drop resistance, IP42 protective level
- Comfortable, ergonomic design
- Symbologies : 2D:PDF417, QR Code, Data Matrix, HanXin, Maxicode ,Postal Codes, etc. 1D:Code128, UCC/EAN-128, AIM128, EAN-8, EAN-13, ISBN/ISSN, UPC-E,UPC-A,Interleaved 2 of 5,ITF-6, ITF-4, Matrix 2 of 5,Industrial 25, Standard 25, Code39, Codabar, Code 93, Code 11, Plessey, MSI-Plessey, RSS-14,RSS-Limited,RSS-Expand, etc.
- Typical DOF : 5mil Code39： 20mm–150mm; EAN： 30mm–300mm; 6.7mil PDF417： 25mm–130mm; 10mil DM： 15mm–100mm; 20mil QR： 15mm–210mm"
- Scanner Interface : RJ-45 Crystal Head
- Housing Materials : PC+TPU
- Power : Standby: 0.5W; Work: 1.15W"
- Anti-shock Ability : 1.5m
- Protection Grade : IP42
- Cable USB : use to connect the scanner to the information receiving host
- Cable RS-232 : use to connect the scanner to the information receiving host"
- AC Adapter : 5V, coordinate with RS-232 cable to powerthe scanner
- Test Condition : Environment temperature: 23ºC; Environment illumination: 300LUX filament lamp; DOF depends on the resolution, contrast of the printing codebar, and the environment illumination
