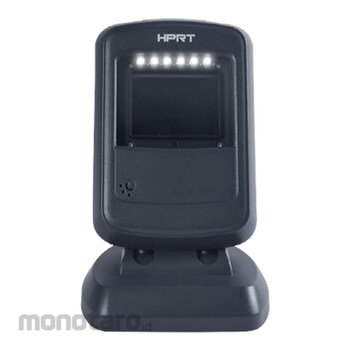

HPRT Barcode Scanner
#Grup produk P111988428
Spesifikasi
| Certification | CE FCC RoHS |
|---|---|
| Dimensions (mm) | 90(D) x 79(W) x 142(H) |
| ESD | ±15 kV (Air discharge) ±8 kV (Direct discharge) |
| Environment Luminosity (lux) | 0 - 100000 |
| FOV | Horizontal: 51° , Vertical: 40° |
| Illumination | White LED |
| Image Sensor | CMOS |
| Interface | RS-232 Serial Port, USB, USB Virtual Serial Port |
| Notification | Buzzer, LED Indicator |
| Operating Current | Standby: 140mA, Working: 245mA |
| Operating Temperature | -20°C - +50°C |
| Operating Voltage | 5VDC±10% |
| Pixel | 640x480 |
| Recognition Sensitivity | Pitch±60°, Tilt360°, Skew±60° |
| Relative Humidity | 5% - 95% (No Condensation) |
| Resolution | ≥4mil |
| Storage Temperature | -40°C - +70°C |
| Symbol Contrast | ≥20% |
| Trigger Method | Manual keystroke, induction recognition, continuous recognition |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
2D Stationary Barcode Scanner- Solid-state hardware, higher stability and reliability
- Multiple common interfaces, highly compatible
- Independent R&D of core decoding technology
- Induction recognition
- Wide-angle adjustable scanning window
- Symbologies : 2D:PDF417, QR Code, Data Matrix, HanXin, Maxicode ,Postal Codes, etc.1D:Code128, UCC/EAN-128, AIM128, EAN-8, EAN-13, ISBN/ISSN, UPC-E,UPC-A,Interleaved 2 of 5,ITF-6, ITF-4, Matrix 2 of 5,Industrial 25, Standard 25, Code39, Codabar, Code 93, Code 11, Plessey, MSI-Plessey, RSS-14, RSS-Limited, RSS-Expand, etc.
- Typical DOF : 13mil EAN: 0mm-130mm; 5mil code 39: 0mm-60mm; 20mil QR: 0mm-70mm; Mobile payment code(5.5 inch screen): 0mm-200mm
- Test Condition : Environment temperature: 23°C; Environment illumination: 300LUX filament lamp DOF depends on the resolution, contrast of the printing codebar, and the environment illumination
