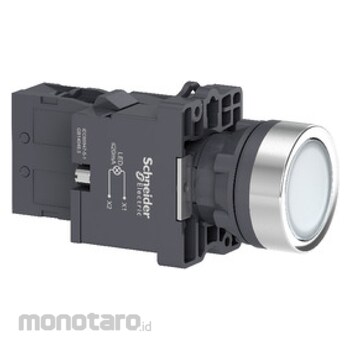

Schneider Electric White Flush Complete Illum Push-Button
#Grup produk P111974018
Kondisi Barang:
Authorized Partner
Spesifikasi
| Bezel Material | Plastic |
|---|---|
| Component Name | XA2E |
| Connections - Terminals | Screw clamp terminals, clamping capacity: 2 x 1.5 mm²; Screw clamp terminals, clamping capacity: 1 x 2.5 mm²; Faston terminals, connection size: 6.3 mm; Screw clamp terminals, clamping capacity: 1 x 0.5 mm² |
| Contact Operation | Slow-break |
| Contacts Type And Composition | 1 NO |
| Device Presentation | Complete product |
| Device Short Name | XA2 |
| Fixing Center (mm) | >= 30x40 (panel) - thickness: 1-5 |
| Fixing Mode | Fixing nut recommended torque: 2.2N.m (Us +/- 10 %) |
| Mechanical Durability (cycles) | 1500000 |
| Mounting Diameter (mm) | 22.5 |
| Operating Position | Any position |
| Operator Profile | White flush |
| Product Range | Easy Harmony XA2 |
| Product or Component Type | Complete illuminated push-button |
| Protective Treatment | TC |
| Shape of Signaling Unit Head | Round |
| Short-Circuit Protection (A) | 10 (gL fuse conforming to IEC 60269-1) |
| Tightening Torque (N m) | 0.8 |
| Type of Operator | Spring return |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
This product is part of the Easy Harmony XA2 range, an offer of Ø 22mm plastic pushbuttons, switches and pilot lights. It is a modular illuminated flush white pushbutton. This pushbutton operates with a spring return / impulse mechanism. This illuminated pushbutton with integral LED provides an ergonomic and visual interface for controlling machines. It has 1 NO contact with slow-break operation. This pushbutton has a 220V AC rating. This is a plastic pushbutton with a metallic-look ring design bezel. It is an IP65 rated product and comes with CE, CCC and EAC certification conforming to GB 14048.1, IEC 60947-1, GB 14048.5 and IEC 60947-5-1 standards . It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. It is clearly distinguishable visually at a distance due to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant making it suitable for operation in harsh environments.
