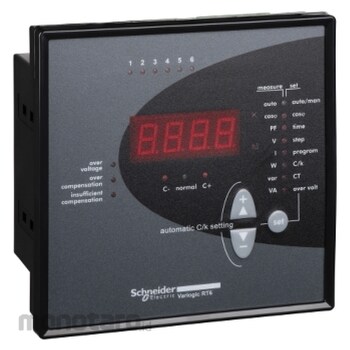

Schneider Electric Varmeter Controller
#Grup produk P111973833
Kondisi Barang:
Authorized Partner
Spesifikasi
| Alarm Function | 5 last alarms |
|---|---|
| Depth (mm) | 67 |
| Device Short Name | RT6 |
| Display Type | 4-digit; 7 segments LED |
| Height (mm) | 143 |
| Input Type | Phase to phase; Current input CT-10000/5 A |
| Measurement Accuracy | +/- 2% |
| Measurement Current (A) | 0-5 |
| Mounting Location | Panel; In cabinet |
| Number of Step Output Contacts | 6 |
| Operating Mode | Manual |
| Product or Component Type | Power factor controller |
| Range | EasyLogic |
| Standard | EN 61010-1; IEC 61326; IEC 61010-1 |
| Step Sequences | 1.2.2.2; 1.2.4.4; 1.2.3.6; 1.1.2.4; 1.2.3.4; 1.1.1.1; Linear; 1.2.3.3; 1.1.2.2; 1.1.2.3; 1.2.4.8 |
| Time Delay Range (s) | 10-1800; 10-1800 (on reconnection) |
| Type Of Setting | Target cos phi: 0.85 inductive-1 |
| Type of Measurement | Power factor |
| Width (mm) | 143 |
| [Us] Rated Supply Voltage (V) | 320-460 AC 50/60Hz |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The Varlogic controllers permanently monitor the reactive power of the installation. This device also control the connection and disconnection of capacitor steps in order to obtain the targeted power factor. In case of overvoltage, low power factor or over compensation an alarm relay will activate. The user can parameter the power factor from 0.85 induct to 1. New control algorithm designed to reduce the number of switching operations and quickly attain the targeted power factor. This version include 6 step output contacts for a range of compensations. Output contacts are calibrated for 3 amps load at 250 V or 1 amp load at 400 V. The power supply allow voltage input from 320 to 460 V. Cerified for Electromagnetic Compatibility with IEC 61326, IEC 61000-6-2 and IEC 61000-6-4. A 139 mm by 139 mm swithcboard cut-out will be necessary for the flush panel mounting.
