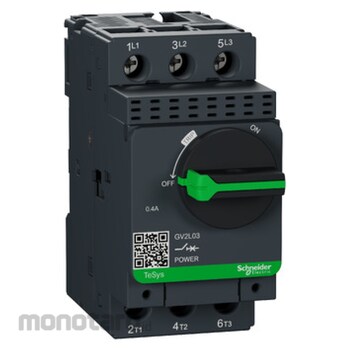

Schneider Electric TeSys GV2 - Circuit Breaker
#Grup produk P111973417
Kondisi Barang:
Authorized Partner
Spesifikasi
| Control Type | Rotary handle |
|---|---|
| Device Application | Motor protection |
| Device Short Name | GV2L |
| Magnetic Tripping Current (A) | 5.8 |
| Mechanical Durability (cycles) | 100000 |
| Motor Power (kW) | 0.09 at 400/415V AC 50/60Hz |
| Network Frequency (Hz) | 50/60 conforming to IEC 60947-2 |
| Network Type | AC |
| Poles Description | 3P |
| Power Dissipation Per Pole (W) | 1.8 |
| Product or Component Type | Motor circuit breaker |
| Range | TeSys Deca |
| Suitability For Isolation | Yes conforming to IEC 60947-1 |
| Trip Unit Technology | Magnetic |
| Utilization Category | Category A conforming to IEC 60947-2; AC-3 conforming to IEC 60947-4-1; AC-3e conforming to IEC 60947-4-1 |
| [In] Rated Current (A) | 0.4 |
| [Ith] Conventional Free Air Thermal Current (A) | 0.4 (conforming to IEC 60947-2) |
| [Ue] Rated Operational Voltage (V) | 690 AC 50/60Hz conforming to IEC 60947-2 |
| [Ui] Rated Insulation Voltage (V) | 690 AC 50/60Hz conforming to IEC 60947-2 |
| [Uimp] Rated Impulse Withstand Voltage (kV) | 6 conforming to IEC 60947-2 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
TeSys GV motor circuit breaker, 3 poles (3P), 0.4A/690V, for 3-phase motor applications 0.06-0.09kW@400V. It provides a magnetic protection with a tripping level at 13xIn, high breaking capacity Icu 100kA. Connection by screw clamp terminals. Start-stop control by rotary handle guaranteed for 100 000 cycles AC-3. To complete motor protection, use in association with a thermal overload relay LRD03 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
