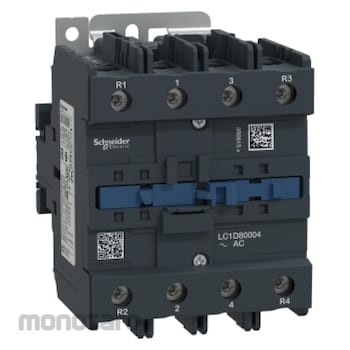

Schneider Electric Tesys D Contactor 4P(4 No) Ac-1
#Grup produk P111973392
Kondisi Barang:
Authorized Partner
Spesifikasi
| Associated Fuse Rating (A) | 200 (gG at ≤690 V coordination type 1 for power circuit); 160 (gG at ≤690 V coordination type 2 for power circuit) |
|---|---|
| Average Impedance | 0.8 mOhm - Ith 125 A 50 Hz for power circuit |
| Compatibility Code | LC1D |
| Contactor Application | Resistive load |
| Device Short Name | LC1D |
| Irms Rated Making Capacity (A) | 1100 (at 440 V for power circuit conforming to IEC 60947) |
| Motor Power (kW) | 22 at 220-230V AC 50/60Hz; 37 at 380-400V AC 50/60Hz; 45 at 660-690V AC 50/60Hz; 55 at 500V AC 50/60Hz; 45 at 415-440V AC 50/60Hz |
| Pole Contact Composition | 4 NO |
| Poles Description | 4P |
| Product Range | TeSys Deca |
| Product or Component Type | Contactor |
| Protective Cover | With |
| Range | TeSys |
| Rated Breaking Capacity (A) | 1100 (at 440V for power circuit conforming to IEC 60947) |
| Utilization Category | AC-1 |
| [Icw] Rated Short-Time Withstand Current (A) | 640 (40°C - 10s for power circuit); 990 (40°C - 1s for power circuit); 135 (40°C - 10min for power circuit); 320 (40°C - 1min for power circuit) |
| [Ie] Rated Operational Current (A) | 125 (at <60 °C) at <= 1000 V AC AC-1 for power circuit; 80 (at <60 °C) at <= 440 V AC AC-3 for power circuit; 80 (at <60 °C) at <= 440 V AC AC-3e for power circuit; 55 (at <60 °C) at <= 400 V AC AC-4 for power circuit |
| [Ith] Conventional Free Air Thermal Current (A) | 125 (at 60°C) for power circuit |
| [Uc] Control Circuit Voltage (V) | 220 AC 50/60Hz |
| [Ue] Rated Operational Voltage (V) | Power circuit: <= 300 DC 25-400Hz; Power circuit: <= 690 AC |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
TeSys Deca contactor, 4-pole (4NO), for non-inductive load applications up to 125A/690V AC-1. It provides a 220V 50/60Hz AC coil, power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (96mm width), DIN-rail mounting or screw fixing. Without build-in auxiliary contacts, side and front mounting auxiliary contact blocks available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
