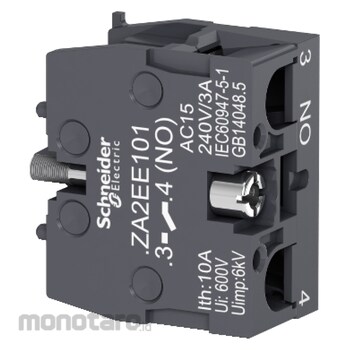

Schneider Electric Single Contact Block for Head Ø22
#Grup produk P111972995
Kondisi Barang:
Authorized Partner
Spesifikasi
| Connections - Terminals | , <= 2 x 1.5 mm² conforming to IEC 60947-1; , <= 1 x 2.5 mm² conforming to IEC 60947-1; , >= 1 x 0.5 mm² conforming to IEC 60947-1; Faston terminals, connection size: 6.3 mm conforming to IEC 60947-1 |
|---|---|
| Contact Block Type | Single |
| Contact Material | Silver alloy (Ag/Ni) |
| Contact Operation | Slow-break |
| Contacts Usage | Standard contacts |
| Device Short Name | ZA2E |
| Electrical Durability | 500000 cycles, AC-15, 2 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1; 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 |
| IP Degree of Protection | IP20 conforming to IEC 60529 |
| Mechanical Durability (cycles) | 1500000 |
| Positive Opening | Without |
| Product Range | Easy Harmony XA2 |
| Product or Component Type | Contact block |
| Protective Treatment | TC |
| Short-Circuit Protection (A) | 10 (fuse type gL conforming to IEC 60269-1) |
| Tightening Torque (N m) | 0.8 |
| [Ie] Rated Operational Current (A) | 2 at 230 V, AC-15, A600 conforming to IEC 60947-5-1; 0.2 at 110 V, DC-13, Q600 conforming to IEC 60947-5-1 |
| [Ith] Conventional Free Air Thermal Current (A) | 10 (conforming to IEC 60947-5-1) |
| [Ui] Rated Insulation Voltage (V) | 600 (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] Rated Impulse Withstand Voltage (kV) | 6 conforming to IEC 60947-1 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
This product is part of the Easy Harmony XA2 range, an offer of Ø 22mm plastic pushbuttons, switches and pilot lights. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on XA2 complete push-button units and selector switches and connects to control circuits with simple screw-clamp connections. It has 1 NO contact with slow-break operation. It uses silver alloy contact material. It protects operators from unexpected contact with live circuits due to its IP20 protection index. It is designed for 1.5 million cycle operation. It is an IP20 rated product and comes with CE, CCC and EAC certification conforming to GB 14048.1, IEC 60947-1, GB 14048.5 and IEC 60947-5-1 standards . It is easily installed and replaced with simple screw-clamp connections.
