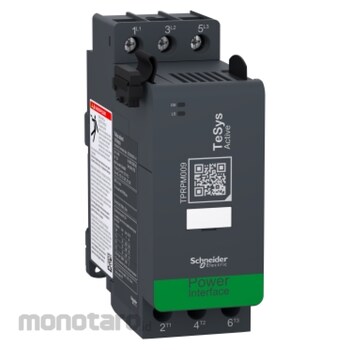

Schneider Electric Power Module Tesys Island
#Grup produk P111972117
Kondisi Barang:
Authorized Partner
Sebelum PPN:
Rp3.399.900 - Rp5.199.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Current Consumption (mA) | 60 |
|---|---|
| Device Presentation | Power module connected to an automation controller through a bus coupler; Operational only when connected to a bus coupler |
| Device Short Name | TPRPM |
| Main Function Available | Upstream voltage presence detection; Electronic thermal overload protection; Monitoring of currents; Control of third party power devices when associated to TPRDG IO module |
| Overvoltage Category | III |
| Poles Description | 3P |
| Product Compatibility | TPRBC bus coupler; TPRDG digital IO module; TPRAN analog IO module |
| Product Range | TeSys |
| Product or Component Type | Power module |
| Reset | Remotely or automatically |
| Thermal Overload Class | Class 5-30 |
| [Uc] Control Circuit Voltage (V) | 24 DC supplied by the bus coupler |
| [Ue] Rated Operational Voltage (V) | <= 690 AC 47-63Hz |
| [Ui] Rated Insulation Voltage (V) | 690 conforming to IEC 60947-4-1; 600 conforming to UL 60947-4-1; 600 conforming to CSA C22.2 No 60947-4-1 |
| [Uimp] Rated Impulse Withstand Voltage (kV) | 6 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
TeSys island power module, 3 poles, 9A/690V. Connected to a TPRBC bus coupler it protects and monitors loads up to 9A and motors up to 4kW@400V / 5hp@480V. External power switching devices could be controlled if associated to a digital IO module TPRDG4X2. It provides motor protection functions including thermal overload (setting 0.18-9A, tripping class 5-30), phase loss, phase unbalance and reversal, long start (stall), locked rotor (jam), rapid cycle lockout, ground current detection. Monitoring of the load includes max/average voltages and currents, number of faults, active and reactive power/energy when associated to a TPRVM001 voltage module. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
