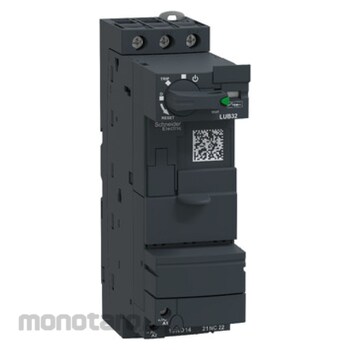

Schneider Electric Power Base Tesys U Screw Clamps Control
#Grup produk P111972038
Kondisi Barang:
Authorized Partner
Spesifikasi
| Auxiliary Contact Composition | 1 NO + 1 NC |
|---|---|
| Auxiliary Contacts Type | type linked contacts (1 NO + 1 NC) conforming to IEC 60947-4-1; type mirror contact (1 NC) conforming to IEC 60947-1 |
| Device Application | Motor control; Motor protection |
| Device Short Name | LUB |
| Heat Dissipation (W) | 3 for control circuit with LUCA, LUCB, LUCC, LUCD; 1.8 for control circuit with LUCM |
| Maximum Operating Rate (cyc/hour) | 3600 |
| Mechanical Durability (Mcycles) | 15 |
| Network Frequency (Hz) | 40-60 |
| Poles Description | 3P |
| Product Certification | CE; UL; CSA; CCC; EAC; ASEFA; ATEX; Marine |
| Product or Component Type | Non reversing power base |
| Range | TeSys |
| Safety Reliability Level | B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| Suitability For Isolation | Yes |
| Utilization Category | AC-43; AC-44; AC-41 |
| [Ics] Rated Service Breaking Capacity (kA) | 50 at 230V; 50 at 440V; 10 at 500V; 4 at 690V |
| [Ie] Rated Operational Current (A) | 32 at <= 440 V; 23 at 500 V; 21 at 690 V |
| [Ith] Conventional Free Air Thermal Current (A) | 32 |
| [Uc] Control Circuit Voltage (V) | 24 AC 50/60Hz; 24 DC; 48-72 AC 50/60Hz; 48-72 DC; 110-240 AC 50/60Hz; 110-220 DC |
| [Ue] Rated Operational Voltage (V) | 690 AC for power circuit |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
TeSys U standard power base, 3 poles (3NO), 32A/690V, to be completed with a control unit LUC to form a TeSys U starter controller, for 3-phase motor applications up to 15kW@400V. Base composed of power contacts, control coil, rotary handle, with a modular design for additional modules to form a "all in one" starter controller with basic or advanced protection and control functions. It is equipped with a control terminal block, and blanking shutters covering the empty cavities. It provides a high breaking capacity Icu 50kA@400V, start-stop control guaranteed for 3600 cycles/hour. Very compact (45mm width), DIN-rail mounting and screw fixing, with a padlockable rotary handle. Certified when used in conjunction with a LUC control unit (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
