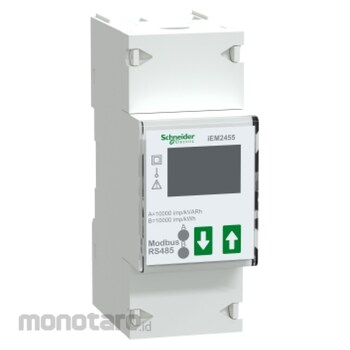

Schneider Electric Modular Single Phase Power Meter IEM with Communication Modbus

The Acti9 iEM2400 series energy meters offer is a single-phase DIN rail-mounted energy meters fitted for basic metering. This product family can be used to monitor power consumption for each sector, unit or workshop and manage electrical installation for building management. It feature a 7-characters/digits display and red LED indicator to display measured electrical parameters. Providing Class 1 active energy accuracy per IEC 62053-21 standard, the meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. Suitable for a 230VAC network, with a supply voltage range of 96 to 276 VAC at 50Hz or 60Hz. Direct connect current measurement up to 100A with 32 samples per cycle only in a Single Phase and Neutral configuration. Communication protocol is RS485 Modbus with 2-wire terminal support, no additional communication ports. You will have the possibility to switch between 2 tariffs via the communication bus. This version is compliant with the standard EN 50470-3 class B, Measuring Instruments Directive (MID). Compatible with power management software to take advantage of the IoT digital power installation.
