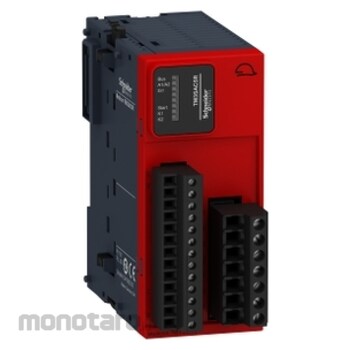

Schneider Electric Modicon TM3 Safety Module
#Grup produk P111971075
Kondisi Barang:
Authorized Partner
Sebelum PPN:
Rp15.999.900 - Rp16.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Associated Fuse Rating (A) | 4 (gG or gL for relay output conforming to IEC 60947-5-1); 6 (fast blow for relay output conforming to IEC 60947-5-1) |
|---|---|
| Breaking Capacity (A) | 4 (24 V 50 ms DC-13 relay output) |
| Breaking Capacity (VA) | 360 holding AC-15 B300 relay output; 3600 inrush AC-15 B300 relay output |
| Input Protection Type | Internal, electronic |
| Maximum Switching Voltage (V) | 230 utilisation category AC-15 at 50 Hz (relay instantaneous opening); 24 utilisation category DC-13 (relay instantaneous opening) |
| Maximum cable distance between devices (m) | 30 |
| Number of Safety Circuits | 3 NO for relay instantaneous opening |
| Output Thermal Current (A) | 6 per relay for relay output |
| Output Type | Relay instantaneous opening, 3 NO circuit(s), potential free |
| Power Consumption Input (W) | 0.2 at 5 V DC; 3.6 at 24 V DC |
| Product Range | Modicon TM3 Safety |
| Product or Component Type | Safety module |
| [Ith] Conventional Free Air Thermal Current (A) | 18 |
| [Uc] Control Circuit Voltage (V) | 24 DC |
| [Us] Rated Supply Voltage (V) | 24 - 15-20% DC |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
This TM3 safety expansion module monitors emergency shutdown pushbuttons and limit switches to conform to PLd / Category 3. It meets the requirements of PL d/Category 3 conforming to EN/ISO 13849-1 and SILCL 2 conforming to EN/IEC 62061. It has a module locking latch, 2 TM3 bus connectors designed to provide continuity of the link between connected modules, a symmetrical rail locking clip, display block for the module channels and diagnostics. It completes your Modicon M221, M241 or M251 PLC configuration with a dedicated safety I/O, without the need to use a complete safety controller. It has removable terminals for easier and better control wire tightening, thus improving installation reliability.
