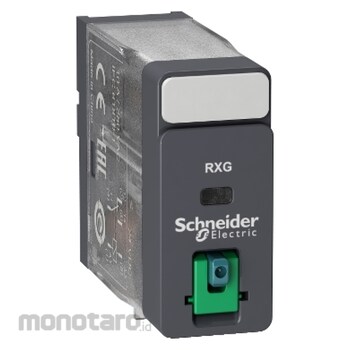

Schneider Electric Interface Plug-In Relay-Harmony RXG-1 C/O Standard
#Grup produk P111970191
Kondisi Barang:
Authorized Partner
Spesifikasi
| Contact Resistance (miliΩ) | 100 |
|---|---|
| Contacts Type And Composition | 1 C/O |
| Electrical Insulation | Class F |
| Insulation Resistance (MΩ) | 1000 at 500 V DC |
| Load current (A) | 10 (at 250V AC) |
| Local Signalling | Flag |
| Maximum Switching Capacity (VA) | 2500 |
| Maximum Switching Voltage (V) | 250 AC; 30 DC |
| Minimum switching capacity (mW) | 500 (at 100 mA, 5V DC) |
| Product Range | Harmony Electromechanical Relays |
| Product or Component Type | Plug-in relay |
| Relay Type | Interface relay |
| Removable Legend | With |
| Series Name | RXG series |
| [Ithe] Conventional Enclosed Thermal Current (A) | 10 (at -40 to 55°C) |
| [Ui] Rated Insulation Voltage (V) | 250 conforming to IEC; 300 conforming to CSA; 300 conforming to UL |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
This Harmony RXG plug-in relay socket has a coil control voltage of 24V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 10A. It has large choice of number of contacts for high rated current use. It also offers lockable test button. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere thanks to its 16mm width. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs).
