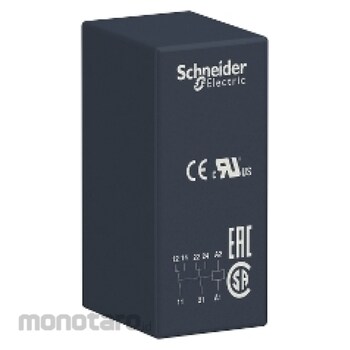

Schneider Electric Interface Plug-In Relay-Harmony RSB-2 C/O
#Grup produk P111970173
Kondisi Barang:
Authorized Partner
Spesifikasi
| Average Resistance | 33000Ohm network: AC at 20 °C +/- 10 % |
|---|---|
| Contacts Type And Composition | 2 C/O |
| Control Type | Without lockable test button |
| Drop-out voltage threshold (V) | >= 0.15 Uc AC |
| Load current (A) | 8 (at 250V AC); 8 (at 28V DC) |
| Maximum Switching Capacity (VA) | 2000/224 W |
| Maximum Switching Voltage (V) | 300 DC conforming to IEC |
| Minimum Switching Current (mA) | 10 |
| Minimum Switching Voltage (V) | 12 |
| Product Range | Harmony Electromechanical Relays |
| Product or Component Type | Plug-in relay |
| Relay Type | Interface relay |
| Series Name | RSB series |
| Status LED | Without |
| [Ie] Rated Operational Current (A) | 4 (AC-1/DC-1) NC conforming to IEC; 8 (AC-1/DC-1) NO conforming to IEC |
| [Ithe] Conventional Enclosed Thermal Current (A) | 8 (at -40 to 40°C) |
| [Uc] Control Circuit Voltage (V) | 220 AC 50/60Hz |
| [Ue] Rated Operational Voltage (V) | 176-330 AC 50/60Hz |
| [Ui] Rated Insulation Voltage (V) | 400 conforming to IEC 60947 |
| [Uimp] Rated Impulse Withstand Voltage (kV) | 3.6 conforming to IEC 61000-4-5 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
This Harmony RSB interfacing plug-in relay has a control coil voltage of 220V AC and has 2 changeover contacts double pole double throw with a rating of 8A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type allows easy installation and maintenance. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts.
