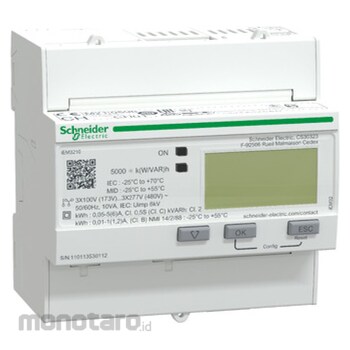

Schneider Electric IEM3210 Energy Meter Pulse O-Mid
#Grup produk P111969973
Kondisi Barang:
Authorized Partner
Spesifikasi
| Accuracy class | Class 0.5S active energy conforming to IEC 62053-22; Class 0.5S active energy conforming to IEC 61557-12; Class C active energy conforming to EN 50470-3 |
|---|---|
| Device Application | Partial meter; Sub billing |
| Device Short Name | iEM3210 |
| Display Type | LCD display |
| Input Type | Current transformer 1 A or 5 A |
| Local Signalling | Green indicator light: power ON; Yellow flashing LED: accuracy checking |
| Maximum Value Measured (MWh) | 99999999 |
| Measurement Current (mA) | 1-32767000 |
| Network Frequency (Hz) | 50; 60 |
| Number of Inputs | 0 (Zero) |
| Number of Outputs | 1 pulse |
| Poles Description | 3P; 1P + N; 3P + N |
| Product Range | Acti9 iEM3000 |
| Product or Component Type | Energy meter |
| Range | Acti9 |
| Rated Voltage (V) | 100-277; 173-480 |
| Sampling Rate | 32 samples/cycle |
| Technology Type | Electronic |
| Type of Measurement | Active energy |
| [In] Rated Current (A) | 5; 1 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The Acti9 iEM3000 series energy meters offer an attractive range of three-phase DIN rail-mounted energy meters with an LCD display. Additional local signaling includes green LED power-on indicator, flashing yellow LED for accuracy checking and communication indicators. This meter can be used in sub-billing and partial metering applications. The meter provides the following accuracy classes: Active Energy: class 1 per IEC 62053-21, Active Energy: class B per EN 50470-3 and Active Energy: class 1 per IEC 61557-12. The meter will measure Active and Reactive Power, Active and Reactive Energy. Designed for 50Hz or 60Hz networks, supply voltage can range from 100 to 277VAC or 173 to 480VAC. The rated current goes through a 1A or 5A transfomer to be measured in this meter and will support Single Phase and Neutral, Three Phase and Three Phase and Neutral configurations. Communication protocol is Modbus with screw terminal support. There is one digital pulsed output for energy reading. Certifications include EAC, CE, UL and MID
