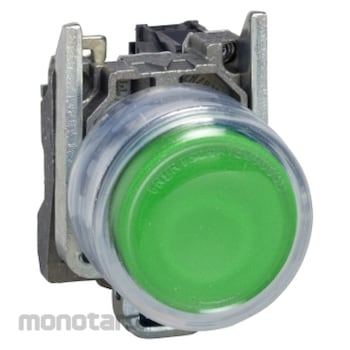

Schneider Electric Green Pushbutton Ø 22-Spring Return-1 No-Atex
#Grup produk P111969751
Kondisi Barang:
Authorized Partner
Sebelum PPN:
Rp1.899.900 - Rp2.799.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Bezel Material | Chromium plated metal |
|---|---|
| Contact Operation | Slow-break |
| Contacts Type And Composition | 1 NO |
| Device Mounting | Fixing Hole |
| Device Short Name | XB4 |
| Dust Zone | Zone 21 - 22 |
| Embedding Depth (mm) | 43 |
| Fixing Center (mm) | >= 30x40 (support panel) |
| Fixing Collar Material | Zamak |
| Fixing Hole Diameter (mm) | 22.5 (22.3 +0.4/0 conforming to IEC 60947-1) |
| Head Type | Standard |
| Marking | Ex tb IIIC |
| Mounting Diameter (mm) | 22 |
| Operator Profile | Green project |
| Product Range | Harmony XB4 |
| Product or Component Type | Complete push button |
| Resistance to High Pressure Washer (Pa) | 7000000 at 55°C, distance : 0.1m |
| Shape of Signaling Unit Head | Round |
| Type of Operator | Spring return |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmospheres. This green pushbutton has a circular head shape with a booted, clear silicon flush push. This offer is specially designed for explosive atmospheres. It is designed for use in dust zone 21-22. This pushbutton with booted clear silicon provides an ergonomic and visual interface for controlling machines. It comes with 1 NO contact with slow-break operation and operates with a spring return mechanism. It has silver alloy contact material. It has a chromium plated metal bezal and has a 22mm diameter head. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connects to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive atmospheres range covering most applications.
