Schneider Electric Genset Start and Alarm Output Signal
#Grup produk P111969715
Kondisi Barang:
Authorized Partner
Spesifikasi
| Auxiliary Connection Terminal | Screw clamp terminal 0.05-2.6mm² |
|---|---|
| Auxiliary Contact Composition | 2 NO + 1 NC |
| Country of Origin | CN |
| Depth (mm) | 69 |
| Device Application | Signalling |
| Height (mm) | 56.5 |
| IP Degree of Protection | IP20 |
| Mounting Mode | Plug-in |
| Mounting Position | Left-bottom |
| Pollution Degree | 3 |
| Product Range | TransferPacT |
| Product or Component Type | I/O module |
| Signalling Function | Genset start output signal; Alarm |
| Tightening Torque (N m) | 0.6 +/- 0.1 |
| Width (mm) | 20 |
| [Ui] Rated Insulation Voltage (V) | 300 AC |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

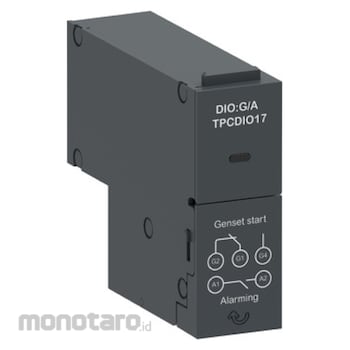

TPCDIO17 is output module as signalling accessory. This functional module is auxiliary contact for Gen start and alarm signal. The rated operational current(Ie) is 5A @250VAC/30VDC. The start signal prevent dry cranking of the engine by requiring the generator set to reach proper output. It can be run for the duration of the cool down setting, when the normal source restores and load is retransferred to normal. The alarm signal output inform user in case of a critical alarm including phase rotation/transfer failures/Micro-switch all closed/ internal error happened. The capacitor is for time delay engine start that will run before genset start no matter with or without external 24VDC.
