Schneider Electric Function Module Transferpact Transfer Inhibit And Remote Testing Input Signal
#Grup produk P111968895
Kondisi Barang:
Authorized Partner
Spesifikasi
| Auxiliary Connection Terminal | Screw clamp terminal 0.05-2.6mm² |
|---|---|
| Auxiliary Contact Composition | 2 NO |
| Country of Origin | CN |
| Depth (mm) | 69 |
| Device Application | Signalling |
| Height (mm) | 56.5 |
| IP Degree of Protection | IP20 |
| Maximum Input Current (mA) | 5 |
| Mounting Mode | Plug-in |
| Mounting Position | Left-bottom |
| Pollution Degree | 3 |
| Product Range | TransferPacT |
| Product or Component Type | I/O module; Dry contact |
| Signalling Function | Transfer inhibit; Remote testing |
| Tightening Torque (N m) | 0.6 +/- 0.1 |
| Width (mm) | 20 |
| [Ui] Rated Insulation Voltage (V) | 30 DC |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

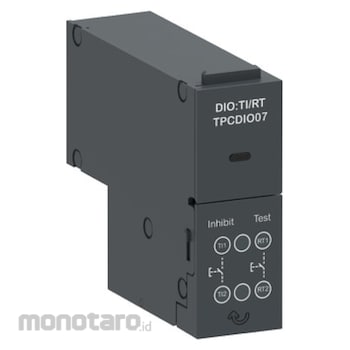

TPCDIO07 is input module as signalling accessory. This functional module has 2 dry contact input for transfer inhibit + Remote testing. The transfer inhibit signal can inhibit transfer. It also can be tailored by user to lock the controller or cooperation with different ATSE. The remote testing signal can start test procedure.
