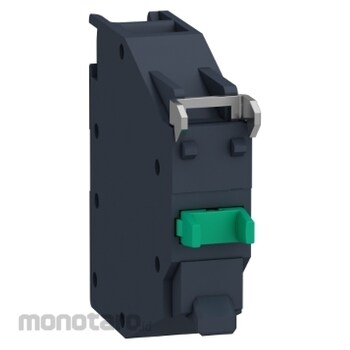

Schneider Electric Explosive Atmosphere-No Contact Block
#Grup produk P111968451
Kondisi Barang:
Authorized Partner
Spesifikasi
| CAD Overall Depth (mm) | 42.4 |
|---|---|
| CAD Overall Height (mm) | 10 |
| CAD Overall Width (mm) | 38 |
| Connections - Terminals | Screw clamp terminals, 2 x 1.5 mm² without cable end; Screw clamp terminals, 1 x 2.5 mm² with cable end |
| Contact Block Type | Single |
| Contact Operation | Standard |
| Contacts Type And Composition | 1 NO |
| Contacts Usage | Gas protected contact |
| Device Short Name | ZBE |
| Marking | Ex db eb IIC Gb |
| Mechanical Durability (cycles) | 1000000 |
| Mounting of Block | Front mounting |
| Operating Force (N) | 3.962 |
| Operating Travel (mm) | 1.657 (engagement point); 4.622 (changing state point); 4.452 (total travel) |
| Positive Opening | Without |
| Product Range | Harmony XB4 |
| Product or Component Type | Contact block |
| Tightening Torque (N m) | 0.8-1.2 conforming to IEC 60947-1 |
| [Ith] Conventional Free Air Thermal Current (A) | 10 (conforming to IEC 60947-5-1) |
| [Ui] Rated Insulation Voltage (V) | 415 |
