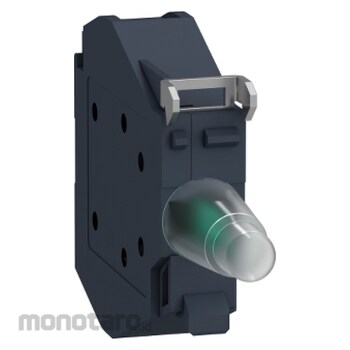

Schneider Electric Explosive Atmosphere-Block 24 240V
#Grup produk P111968415
Kondisi Barang:
Authorized Partner
Spesifikasi
| Ambient Air Temperature for Operation (°C) | -50 to 95 |
|---|---|
| Ambient Air Temperature for Storage (°C) | -50 to 70 |
| Bulb Base | Integral LED |
| CAD Overall Depth (mm) | 58.8 |
| CAD Overall Height (mm) | 10 |
| CAD Overall Width (mm) | 38 |
| Connections - Terminals | Screw clamp terminals, 2 x 1.5 mm² without cable end conforming to IEC 60947-1; Screw clamp terminals, 1 x 2.5 mm² with cable end conforming to IEC 60947-1 |
| Current Consumption (mA) | 2-10 |
| Device Short Name | ZBV |
| Light Block Supply | Direct |
| Light Source | LED |
| Light source color | Green |
| Marking | Ex eb mb IIC Gb |
| Mounting of Block | Front mounting |
| Product Range | Harmony XB4 |
| Product or Component Type | Light block |
| Protective Treatment | TH |
| Signalling Type | Steady |
| Tightening Torque (N m) | 0.8-1.2 conforming to IEC 60947-1 |
| [Us] Rated Supply Voltage (V) | 24-254 AC/DC |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
