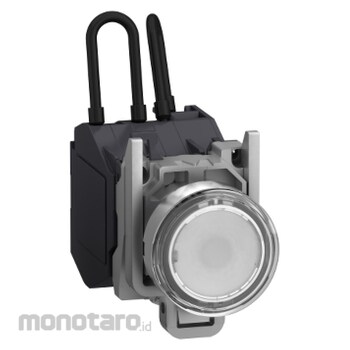

Schneider Electric Explosive Atmosphere Push-To-Test Pilot Light
#Grup produk P111968390
Kondisi Barang:
Authorized Partner
Spesifikasi
| Bezel Material | Chromium plated metal |
|---|---|
| Contact Operation | Slow-break |
| Contacts Type And Composition | 1 NO |
| Depth (mm) | 72 |
| Device Mounting | Fixing Hole |
| Device Short Name | XB4 |
| Embedding Depth (mm) | 58 |
| Fixing Center (mm) | >= 30x40 (support panel) - thickness: 1-6 |
| Fixing Collar Material | Zamak |
| Fixing Hole Diameter (mm) | 22.5 (+/- 0.2 conforming to IEC 60947-1) |
| Height (mm) | 30 |
| Mounting Diameter (mm) | 22 |
| Operator Additional Information | Booted (clear silicon) |
| Positive Opening | Without |
| Product Range | Harmony XB4 |
| Product or Component Type | Push-to-test pilot light |
| Shape of Signaling Unit Head | Round |
| Width (mm) | 46.2 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmosphere. This push-to-test pilot light has a circular head shape and comes with integral white LED. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22 and gas zone 1-2. This pilot light with plain lens provides clear visual feedback on the status of machines. It comes with 1 NO contact with slow-break operation. This pilot light has a 24V to 254V AC/DC rating. It has a chromium plated metal bezal. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.
