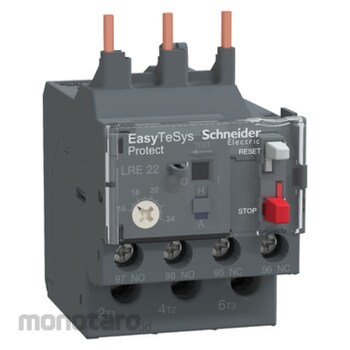

Schneider Electric Easypact TVS Differential Thermal Overload Relay
#Grup produk P111967939
Kondisi Barang:
Authorized Partner
Spesifikasi
| Associated Fuse Rating (A) | 50 (gG for power circuit); 25 (aM for power circuit); 5 (gG for signalling circuit) |
|---|---|
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Color | Grey (RAL 7011) |
| Device Short Name | LRE |
| Mechanical Robustness | Shocks: 6 Gn for 11 ms conforming to IEC 60068-2-7; Vibrations: 3 GN conforming to IEC 60068-2-6 |
| Mounting Support | Under contactor; Plate, with specific accessories; Rail, with specific accessories |
| Network Frequency (Hz) | 50-60 |
| Network Type | AC |
| Phase Failure Sensitivity | Tripping current 130 % of Ir on two phase, the last one at 0 conforming to IEC 60947-4-1 |
| Product Compatibility | LC1E25-38 |
| Product Range | Easy TeSys Protect |
| Product or Component Type | Differential thermal overload relay |
| Range | Easy TeSys |
| Relay Application | Motor protection |
| Signalling Function | Relay trip indicator |
| Thermal Overload Class | Class 10A conforming to IEC 60947-4-1 |
| Thermal Protection Adjustment Range (A) | 16-24 |
| Tripping Threshold | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 |
| [Ith] Conventional Free Air Thermal Current (A) | 5 (for signalling circuit) |
| [Ue] Rated Operational Voltage (V) | <= 690 AC |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The LRE relay is a differential thermal overload relays for use with fuses or magnetic circuit-breakers GV2 L and GV3 L. Its thermal setting range is 16-24A 50/60Hz and the tripping class is 10A conforming to IEC 60947-4-1. It can be direct mounted on Easy TeSys Control contactors with screw clamp terminals connection. It protects unbalanced loads and motors with 15kW at 400VAC. It provides manual or automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach).
