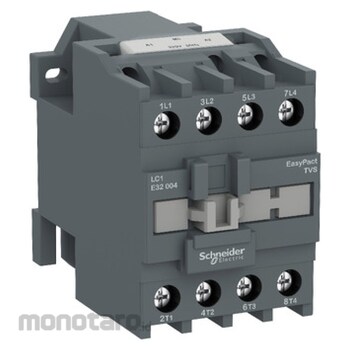

Schneider Electric Easypact TVS Contactor 4P (4No)
#Grup produk P111967911
Kondisi Barang:
Authorized Partner
Spesifikasi
| Associated Fuse Rating (A) | 63 (gG at ≤690 V coordination type 1 for power circuit conforming to IEC 60947-5-1) |
|---|---|
| Average Impedance | 2.5 mOhm - Ith 45 A 50 Hz for power circuit |
| Contactor Application | Resistive load |
| Device Short Name | LC1E |
| Irms Rated Making Capacity (A) | 320 (at 440 V AC for power circuit conforming to IEC 60947-4-1) |
| Overvoltage Category | III |
| Pole Contact Composition | 4 NO |
| Polish Description | 4P |
| Power Dissipation Per Pole (W) | 2 AC-3; 5 AC-1 |
| Product Range | Easy TeSys Control |
| Product or Component Type | Contactor |
| Range | Easy TeSys |
| Rated Breaking Capacity (A) | 256 (at 440V for power circuit conforming to IEC 60947) |
| Utilization Category | AC-1 |
| [Icw] Rated Short-Time Withstand Current (A) | 260 (40°C - 10s for power circuit); 138 (40°C - 60s for power circuit); 60 (40°C - 600s for power circuit) |
| [Ie] Rated Operational Current (A) | 45 (at <55 °C) at <= 440 V AC AC-1 for power circuit |
| [Ith] Conventional Free Air Thermal Current (A) | 45 (at 55°C) for power circuit |
| [Uc] Control Circuit Voltage (V) | 220 AC 50/60Hz |
| [Ue] Rated Operational Voltage (V) | Power circuit: <= 690 AC 50/60Hz |
| [Ui] Rated Insulation Voltage (V) | 690 conforming to IEC 60947-4-1 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
EasyPact TVS contactor 4 poles for category AC-1 applications up to 45A. It provides a 220V 50/60Hz AC coil, 4NO built-in auxiliary contacts, power and control connections by screw clamp terminals. 56mm width for standard operating rates up to 1800 cycles per hour. It procures standard reliability and durability with 0.35 Mcycles electrical durability and 8 Mcycles mechanical durability. It can cover -5°C to 55°C working temperature and mounted by DIN-rail, No derating up to 3000m altitude. Multi-standards certified (IEC, CCC, EAC) and Green Premium compliant (RoHs/Reach).
