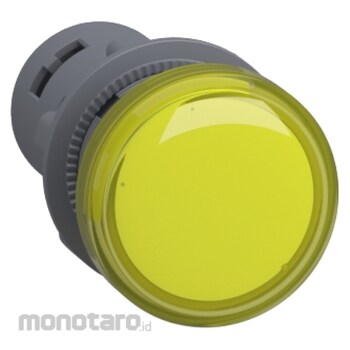

Schneider Electric Easy Harmony Xa2E Monolithic Pilot Light
#Grup produk P111967133
Kondisi Barang:
Authorized Partner
Spesifikasi
| Bulb Base | Integral LED |
|---|---|
| CAP/Operator or Lens Colour | Yellow |
| Connections - Terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1; Screw clamp terminals, 1 x 0.5-1 x 2.5 mm² without cable end conforming to IEC 60947-1 |
| Device Mounting | Fixing hole 22.3 +0.4/0 conforming to IEC 60947-5-1 |
| Device Short Name | XA2 |
| Fixing Center (mm) | >= 30x40 (support panel) metal - thickness: 1-6; >= 30x40 (support panel) plastic - thickness: 2-6 |
| Fixing Mode | Fixing nut beneath head recommended torque: 2.2N.m (+/- 0.2N.m) |
| Light Source | LED |
| Mounting Diameter (mm) | 22.5 |
| Product Range | Easy Harmony XA2 |
| Product or Component Type | Monolithic pilot light |
| Shape of Screw Head | Cross compatible with Philips No 2 screwdriver; Slotted compatible with flat Ø 4mm screwdriver; Slotted compatible with flat Ø 5.5mm screwdriver |
| Shape of Signaling Unit Head | Round |
| Signalling Type | Steady |
| Terminals Description Iso N°1 | (X1-X2)PL |
| [Ui] Rated Insulation Voltage (V) | 400 (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] Rated Impulse Withstand Voltage (kV) | 6 conforming to IEC 60947-1 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
This product is part of the Easy Harmony XA2 range, an offer of Ø 22mm plastic pushbuttons, switches and pilot lights. This monolithic Yellow pilot light comes with integral LED. This single component pilot light provides clear visual feedback on the status of machines. This pilot light has a 24V AC/DC rating. This is a plastic component and weighs 0.02kg. It is an IP65 rated product and comes with CE, CCC and EAC certification conforming to GB 14048.1, IEC 60947-1, GB 14048.5 and IEC 60947-5-1 standards . It is sold in lots of 10. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant making it suitable for operation in harsh environments.
