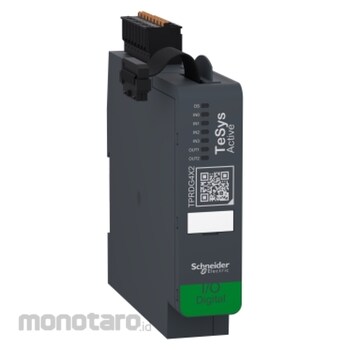

Schneider Electric Digital Io Module Tesys Island
#Grup produk P111966930
Kondisi Barang:
Authorized Partner
Spesifikasi
| Current Consumption (mA) | 10 |
|---|---|
| Device Short Name | TPRDG |
| Discrete Input Current (mA) | 7 at 24V |
| Discrete Input Logic | Positive or negative, 0-5 V (state 0), 15-28.8 V (state 1) |
| Discrete Input Number | 4 isolated with common point conforming to IEC 61131-2 Type 1 |
| Discrete Input Voltage (V) | 24 DC (voltage limits: 19.2-28.8) |
| Discrete Output Current (A) | 0.5 maximum |
| Discrete Output Logic | Source or sink |
| Discrete Output Number | 2 isolated with common point |
| Discrete Output Voltage (V) | 24 DC (voltage limit: 19.2-28.8) |
| Function of Module | Control of 4 sink/source digital inputs with common point; Control of 2 sink/source digital outputs with common point |
| Input Impedance (kΩ) | 3.43 |
| Power Dissipation (W) | 0.5 maximum |
| Product Compatibility | TPRBC bus coupler; TPRPM power module |
| Product or Component Type | Digital IO module |
| Protection Type | 1 external fuse, 0.5 A fast fuse for each output |
| Range | TeSys |
| Response Time (ms) | 5 at 24 V for digital input; 5 at 24 V for digital output |
| [Uimp] Rated Impulse Withstand Voltage (kV) | 0.5 conforming to IEC 61010-1 |
| [Us] Rated Supply Voltage (V) | 24 DC supplied by the bus coupler |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
TeSys island digital IO module, 4 digital inputs 24V DC, 2 digital outputs 24V DC. Connected to a TPRBC bus coupler it is used for advanced control functions (TeSys avatars). It can be used to control external power switching devices when associated to a TPRPM power module. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
