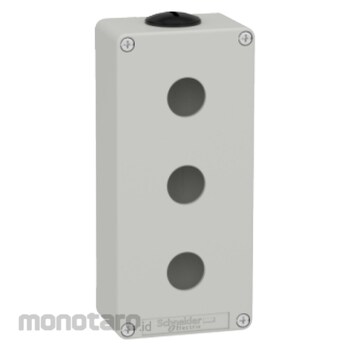

Schneider Electric Die Cast Empty Control Station
#Grup produk P111966912
Kondisi Barang:
Authorized Partner
Spesifikasi
| CAD Overall Depth (mm) | 51.5 |
|---|---|
| CAD Overall Height (mm) | 175 |
| CAD Overall Width (mm) | 80 |
| Cable Entry | 2 x cable gland conforming to ISO |
| Color of Base of Enclosure | Grey (RAL 7035) |
| Colour of Cover | Grey (RAL 7035) |
| Control Station Type | Metal |
| Cut-Out Dimensions (mm) | 22 |
| Device Short Name | XAPD |
| Front Plate (mm) | 80x175 |
| IP Degree of Protection | IP65 conforming to EN/IEC 60529 and EN/IEC 60947-5-1; IP66 conforming to EN/IEC 60529 and EN/IEC 60947-5-1; IP69 conforming to EN/IEC 60529 and EN/IEC 60947-5-1 |
| Material | Die Cast Zinc |
| Nb of Horizontal Rows | 3 |
| Number of Cut-Out | 3 cut-outs |
| Number of Vertical Rows | 1 |
| Product Destination | For Ø 22mm control and signalling units |
| Product Range | Harmony XAP |
| Product or Component Type | Die-cast empty control station |
| Thread Type | M25 x 1.5 |
| Usable Depth (mm) | 49 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
This product is part of XAP range, an offer of metal control stations for XB4 and XB5 series of Ø 22mm pushbuttons. XAPD3203 is an empty enclosure with grey color (RAL7035). This version with 3 holes allows any type of XB4/XB5 functions, including E-stops with legend plate. 2 sizes of legend holders can be used in different positions. The size remains compact. It is possible to customize the XAP with the Harmony online product selector and configurator. This product has been standardized with metric thread to be used with ISO cable glands to be fully compliant with the IEC 62444. It comes with two M25 holes. The electric shock protection is at class I conforming to EN/IEC 61140 and the mechanical shock protection level is up to IK07 conforming to EN/IEC 62262. XAPD is designed for Original Equipment Manufacturers (OEMs) that meets heavy duty application requirements such as material handling, food & beverage, wind turbines, Mining, Minerals and Metals (MMM), vehicles, etc. This enclosure complies with EN/IEC 60529 and EN/IEC 60947-5-1 and comes with CE and EAC certification. Fully customized legend panel are available to improve interface experience and enclosure's aesthetic. XAP is designed to be mounted in both vertical and horizontal position with 4 fixing holes. The form factor allows a combination between simplicity, customization flexibility and attractive design for machines
