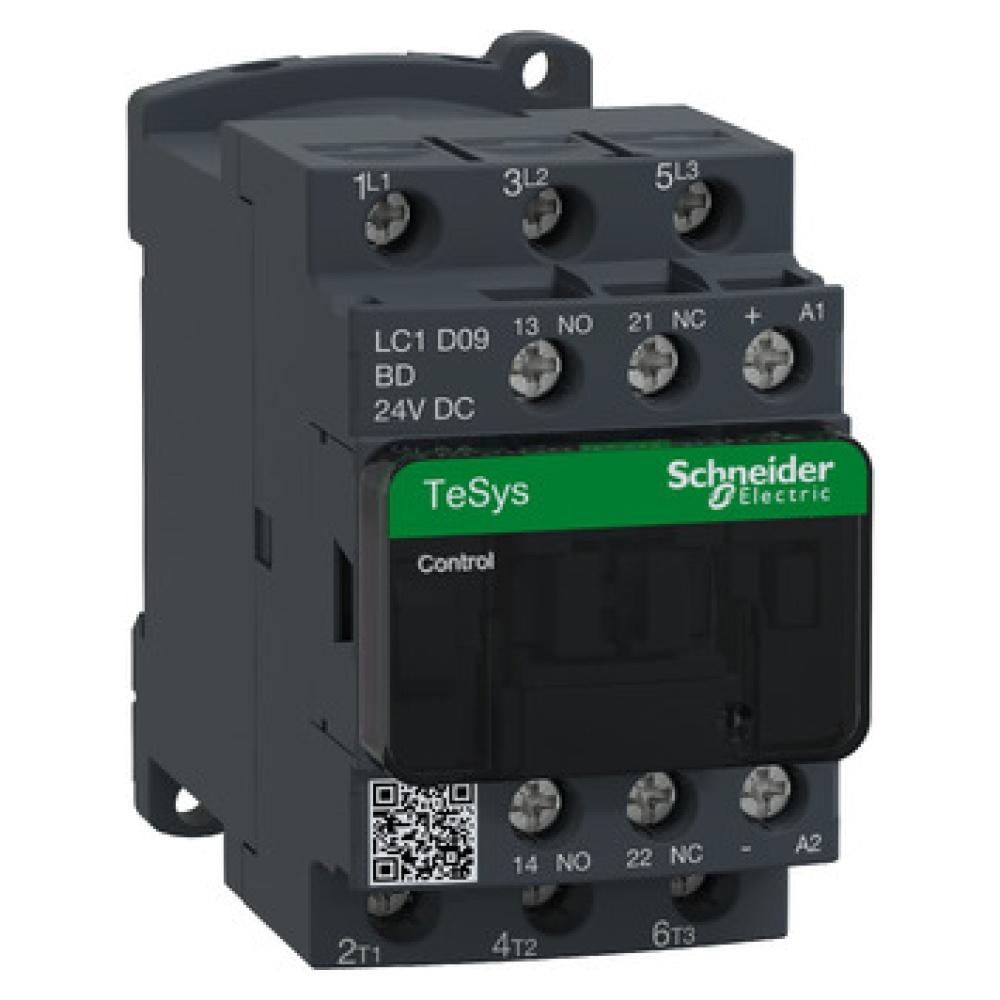

Schneider Electric Electromagnetic Contactor Tesys Deca 3P 3NO (Kontaktor Magnet)
#Grup produk P111966657
Kondisi Barang:
Authorized Partner
Spesifikasi
| Associated Fuse Rating (A) | 10 (gG for signalling circuit conforming to IEC 60947-5-1); 25 (gG at ≤690 V coordination type 1 for power circuit); 20 (gG at ≤690 V coordination type 2 for power circuit) |
|---|---|
| Average Impedance | 2.5 mOhm - Ith 25 A 50 Hz for power circuit |
| Compatibility Code | LC1D |
| Contactor Application | Motor control; Resistive load |
| Device Short Name | LC1D |
| Irms Rated Making Capacity (A) | 250 (at 440 V for power circuit conforming to IEC 60947); 140 (AC for signalling circuit conforming to IEC 60947-5-1); 250 (DC for signalling circuit conforming to IEC 60947-5-1) |
| Overvoltage Category | III |
| Pole Contact Composition | 3 NO |
| Poles Description | 3P |
| Power Dissipation Per Pole (W) | 1.56 AC-1; 0.2 AC-3; 0.2 AC-3e |
| Product Range | TeSys Deca |
| Product or Component Type | Contactor |
| Protective Cover | With |
| Rated Breaking Capacity (A) | 250 (at 440V for power circuit conforming to IEC 60947) |
| Utilization Category | AC-4; AC-1; AC-3; AC-3e |
| [Ie] Rated Operational Current (A) | 9 (at <60 °C) at <= 440 V AC AC-3 for power circuit; 25 (at <60 °C) at <= 440 V AC AC-1 for power circuit; 9 (at <60 °C) at <= 440 V AC AC-3e for power circuit |
| [Ith] Conventional Free Air Thermal Current (A) | 25 (at 60°C) for power circuit; 10 (at 60°C) for signalling circuit |
| [Uc] Control Circuit Voltage (V) | 24 DC |
| [Ue] Rated Operational Voltage (V) | Power circuit: <= 690 AC 25-400Hz; Power circuit: <= 300 DC |
| [Ui] Rated Insulation Voltage (V) | Power circuit = 690 conforming to IEC 60947-4-1; Power circuit = 600 CSA certified; Power circuit = 600 UL certified; Signalling circuit = 690 conforming to IEC 60947-1; Signalling circuit = 600 CSA certified; Signalling circuit = 600 UL certified |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3/3e (4kW@400V). It provides a 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
