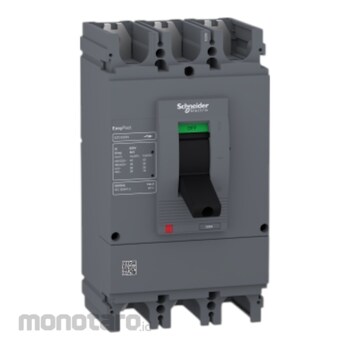

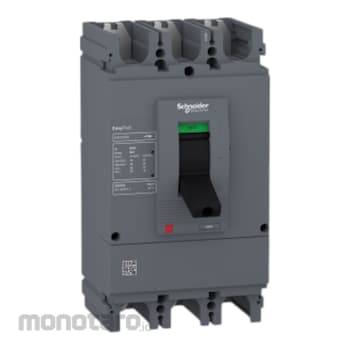

Schneider Electric Circuit Breaker EasyPact EZC630N
#Grup produk P111965898
Kondisi Barang:
Authorized Partner
Sebelum PPN:
Rp14.999.900 - Rp19.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Breaking Capacity (kA) | 36 Icu (at 440V AC 50/60Hz conforming to IEC 60947-2); 40 Icu (at 220/230V AC 50/60Hz conforming to IEC 60947-2); 36 Icu (at 380V AC 50/60Hz conforming to IEC 60947-2); 36 Icu (at 400/415V AC 50/60Hz conforming to IEC 60947-2) |
|---|---|
| Breaking Capacity Code | N |
| Circuit Breaker Name | Easypact EZC630N |
| Device Application | Distribution |
| Device Short Name | Easypact EZC630N |
| Network Frequency (Hz) | 50/60 |
| Network Type | AC |
| Product Range | EasyPact |
| Product or Component Type | Circuit breaker |
| Protected Poles Description | 3t |
| Suitability For Isolation | Yes conforming to IEC 60947-2 |
| Trip Unit Name | TM-D |
| Trip Unit Technology | Thermal-magnetic |
| Utilization Category | Category A |
| [Ics] Rated Service Breaking Capacity (kA) | 18 at 440V AC 50/60Hz conforming to IEC 60947-2; 40 at 220/230V AC 50/60Hz conforming to IEC 60947-2; 36 at 380V AC 50/60Hz conforming to IEC 60947-2; 36 at 400/415V AC 50/60Hz conforming to IEC 60947-2 |
| [In] Rated Current (A) | 630 at 40°C |
| [Ue] Rated Operational Voltage (V) | 440 AC 50/60Hz conforming to IEC 60947-2 |
| [Ui] Rated Insulation Voltage (V) | 690 AC 50/60Hz conforming to IEC 60947-2 |
| [Uimp] Rated Impulse Withstand Voltage (kV) | 6 conforming to IEC 60947-2 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
EasyPact EZC630N is a 3 poles 3d circuit breaker with a high level of performance and cost-saving functionality. It is an optimal choice for small and medium-sized buildings protection applications. The breaking capacity (Icu) is 50kA rms at 415VAC 50/60Hz. The operational voltage is 415VAC 50/60Hz. This product embeds a 630A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 3 poles version (140mm x 255mm x 110mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947, CCC, EAC).
